ELECTRIFY YOUR CATRIKE WITH OUR MOTOR UPGRADE OPTIONS


View some recent custom trike builds of the KMX Thunderbolt Motorized Recumbent Electric Trike:

Gregory's Bengal Red KMX Thunderbolt
Gregory's Bengal Red KMX Thunderbolt


Matthew's Red KMX Thunderbolt
Matthew's Red KMX Thunderbolt

Dawayne's Root Beer KMX Thunderbolt
Dawayne's Root Beer KMX Thunderbolt

Mary's Black KMX Thunderbolt Trike
Mary's Black KMX Thunderbolt Trike

James' Candy Green KMX Thunderbolt
James' Candy Green KMX Thunderbolt

Justin's UTCustom KMX Thunderbolt Electric Trike
Justin's UTCustom KMX Thunderbolt Electric Trike

Kurt's UTCustom KMX Thunderbolt Electric Trike
Kurt's UTCustom KMX Thunderbolt Electric Trike

UTCustom KMX Thunderbolt Electric Trike
UTCustom KMX Thunderbolt Electric Trike

KMX Thunderbolt Motorized Trike Bengal Red
KMX Thunderbolt Motorized Trike Bengal Red

KMX Thunderbolt Motorized Trike Black
KMX Thunderbolt Motorized Trike Black

KMX Thunderbolt Motorized Bengal White
KMX Thunderbolt Motorized Bengal White

KMX Thunderbolt Motorized Trike Fluorescent Yellow
KMX Thunderbolt Motorized Trike Fluorescent Yellow

Bengal White KMX Thunderbolt Motorized Trike
Bengal White KMX Thunderbolt Motorized Trike

Pearl White KMX Thunderbolt Motorized Trike
Pearl White KMX Thunderbolt Motorized Trike

Bengal Blue KMX Thunderbolt Motorized Trike
Bengal Blue KMX Thunderbolt Motorized Trike

Satin Black KMX Thunderbolt Motorized Trike
Satin Black KMX Thunderbolt Motorized Trike

KMX Thunderbolt Motorized Trike Burnt Orange
KMX Thunderbolt Motorized Trike Burnt Orange

KMX Thunderbolt Motorized Trike Mango & Candy Blue
KMX Thunderbolt Motorized Trike Mango & Candy Blue

KMX Thunderbolt Motorized Trike Satin Black
KMX Thunderbolt Motorized Trike Satin Black

KMX Thunderbolt Motorized Trike Black
KMX Thunderbolt Motorized Trike Black

View All Custom KMX Thunderbolt Motorized Recumbent Electric Trikes
View All Recent Trikes

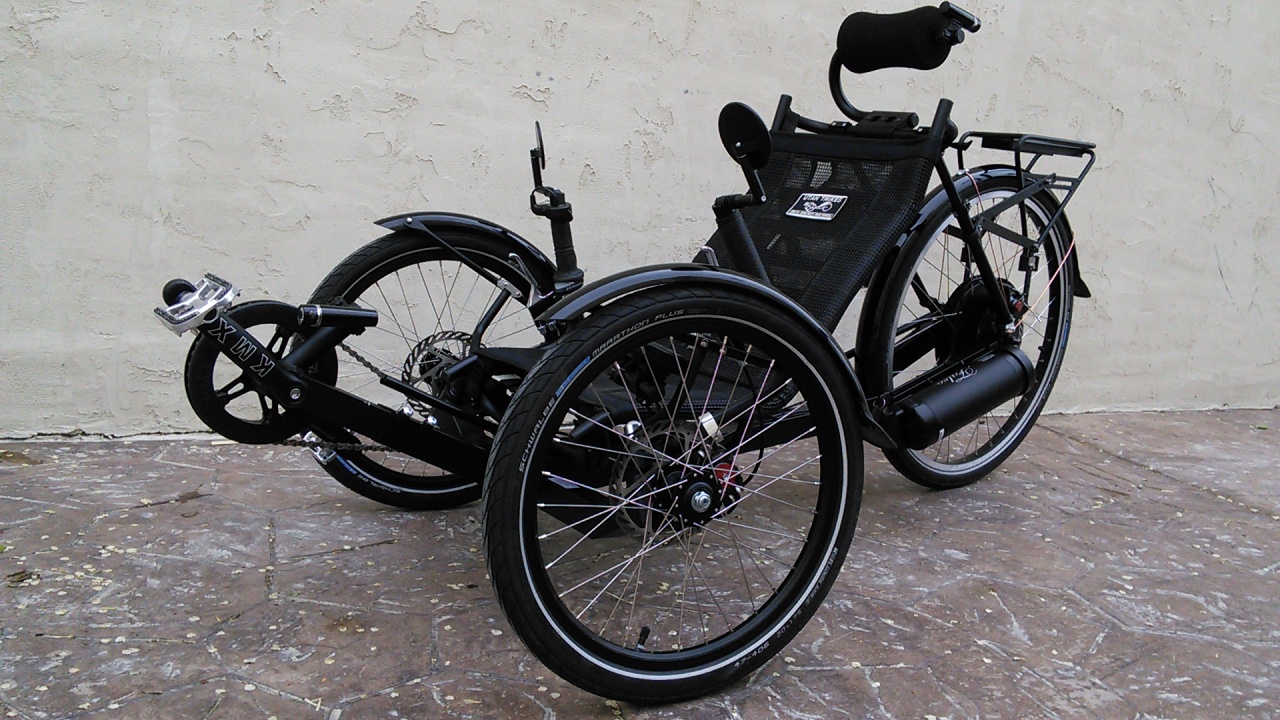

KMX Thunderbolt Motorized Trike Satin Black
KMX Thunderbolt Motorized Recumbent Electric Trike

Get your own custom KMX Thunderbolt Motorized Recumbent Electric Trike

 -

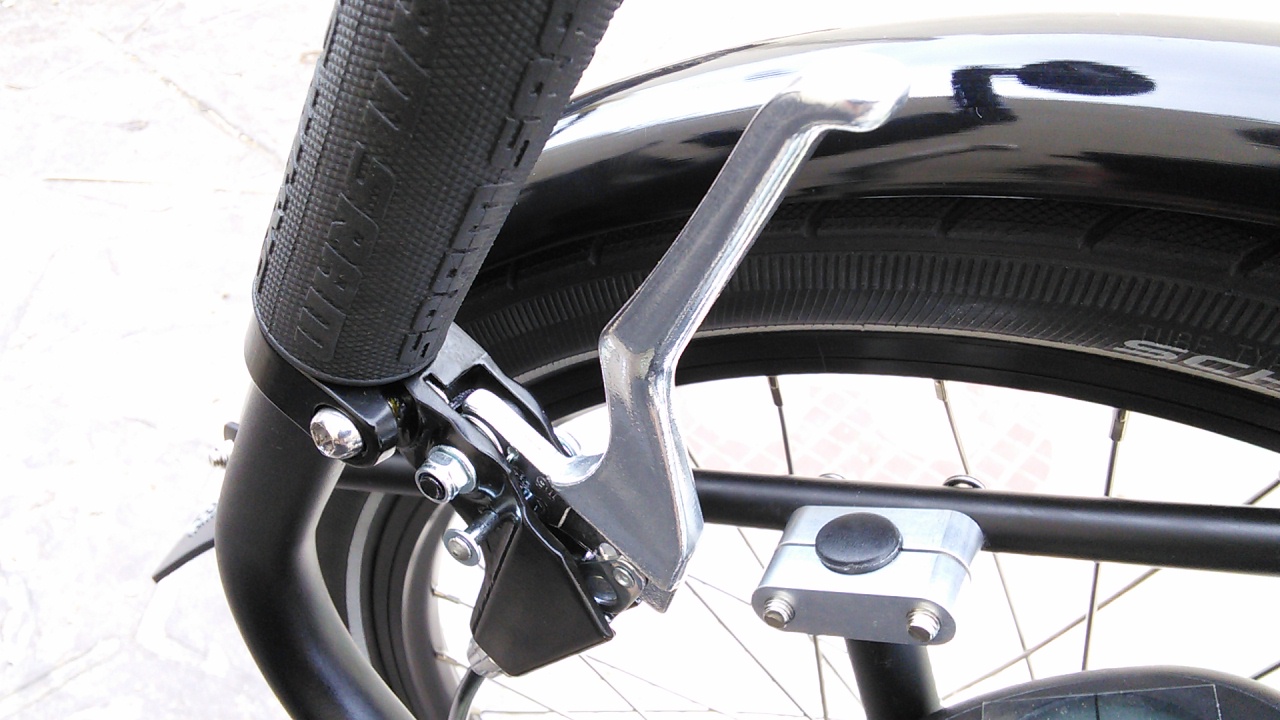

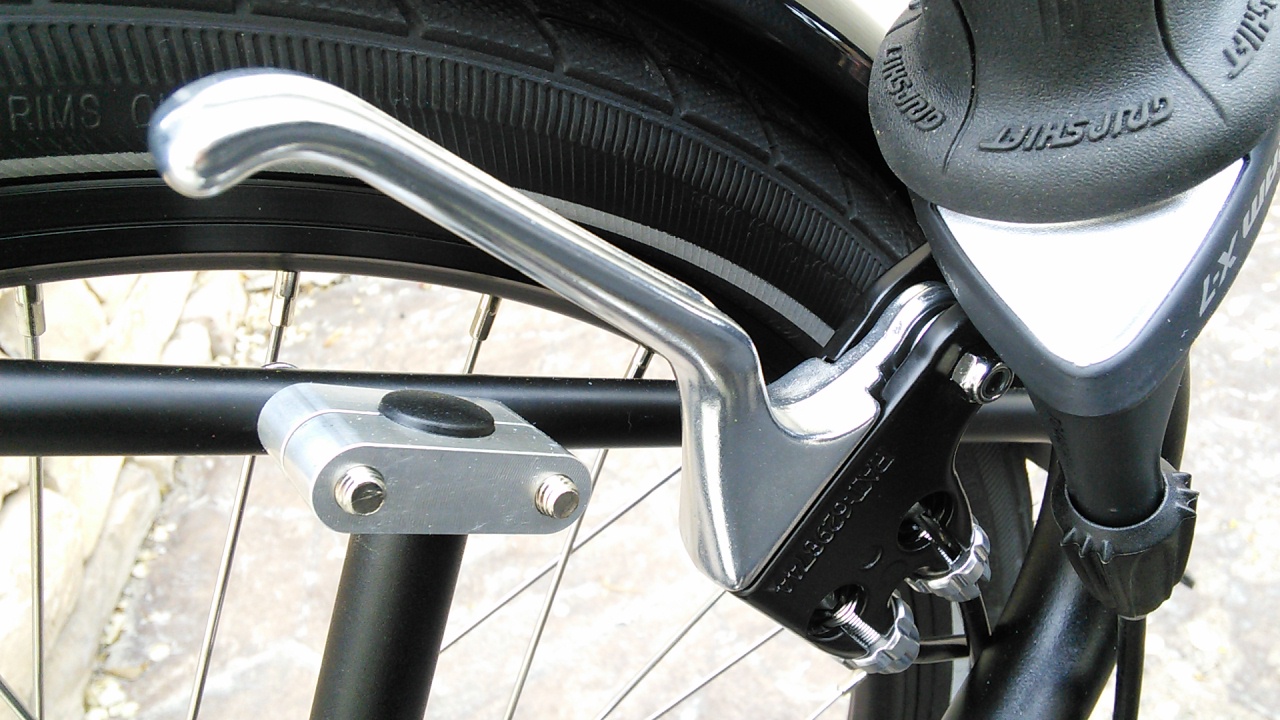

One Hand Brake Control Lever - LEFT Side Dual Pull - Do you need to operate all of the controls with one hand? Do you prefer to have no brake-steer? If you answered yes to either question, order this dual control brake lever! It's a single lever that operates both brakes and is compatible with all trikes we currently sell. -The Double Barrel lever pulls two long-pull brakes simultaneously -Forged aluminum lever and cast aluminum bracket -Three-finger design

 -
Avid BB7 Front Disc Brake Kit (pair) - This kit includes everything you need to upgrade your trike's brake system to the best mechanical disc brake system available. Perfect for for any home builds.


 -

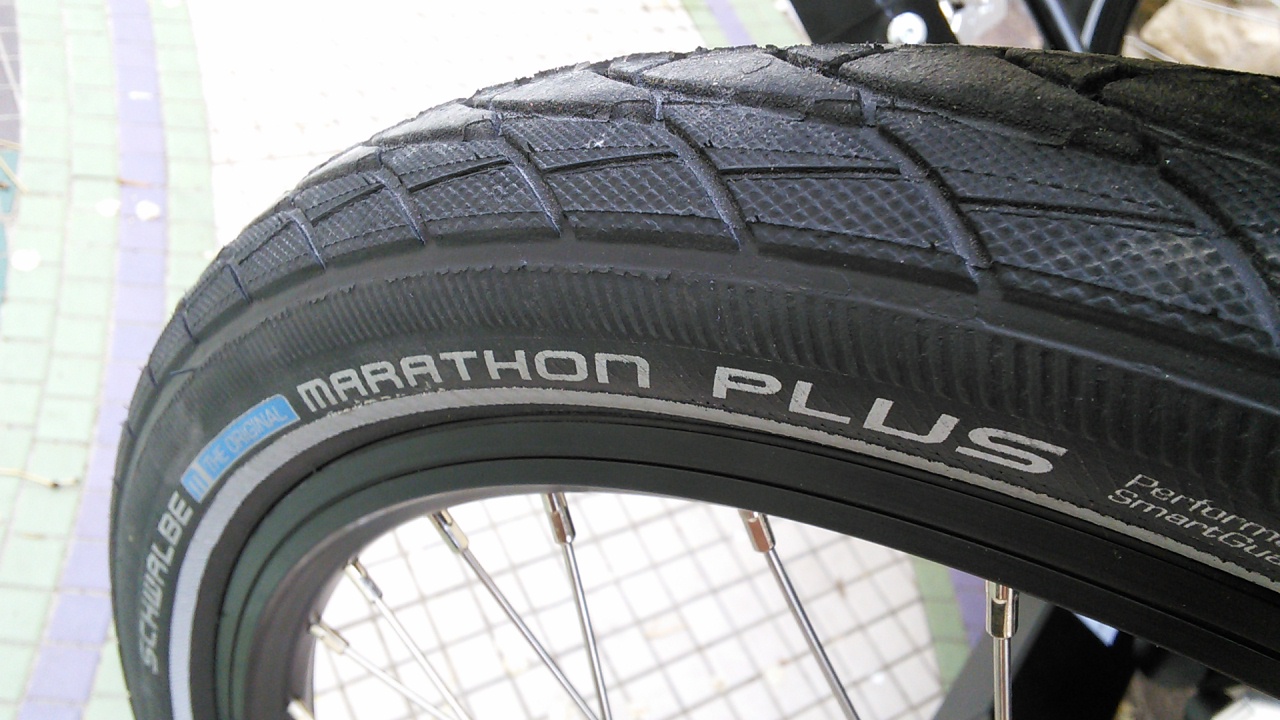

Schwalbe Marathon Plus 20x1.75 (47-406) HS440 Tire - The Marathon plus tire has a thick protective liner to keep foreign objects from reaching the tube. Schwalbe has a protection level 7 out of 7 for all Marathon Plus tires. This is our most popular tire by far because it's affordable and they will outlast any tire out there. You'll be surprised at how smooth and quiet they roll. -WIRE BEAD -PSI: 50-70


 -
UTCustom Adjustable Super Headrest - Serious riders want serious comfort. That's why we created the Super Headrest. Our headrest is adjustable and functions as an additional support for your shoulders, neck, and head. Compatible with All Catrikes


 -

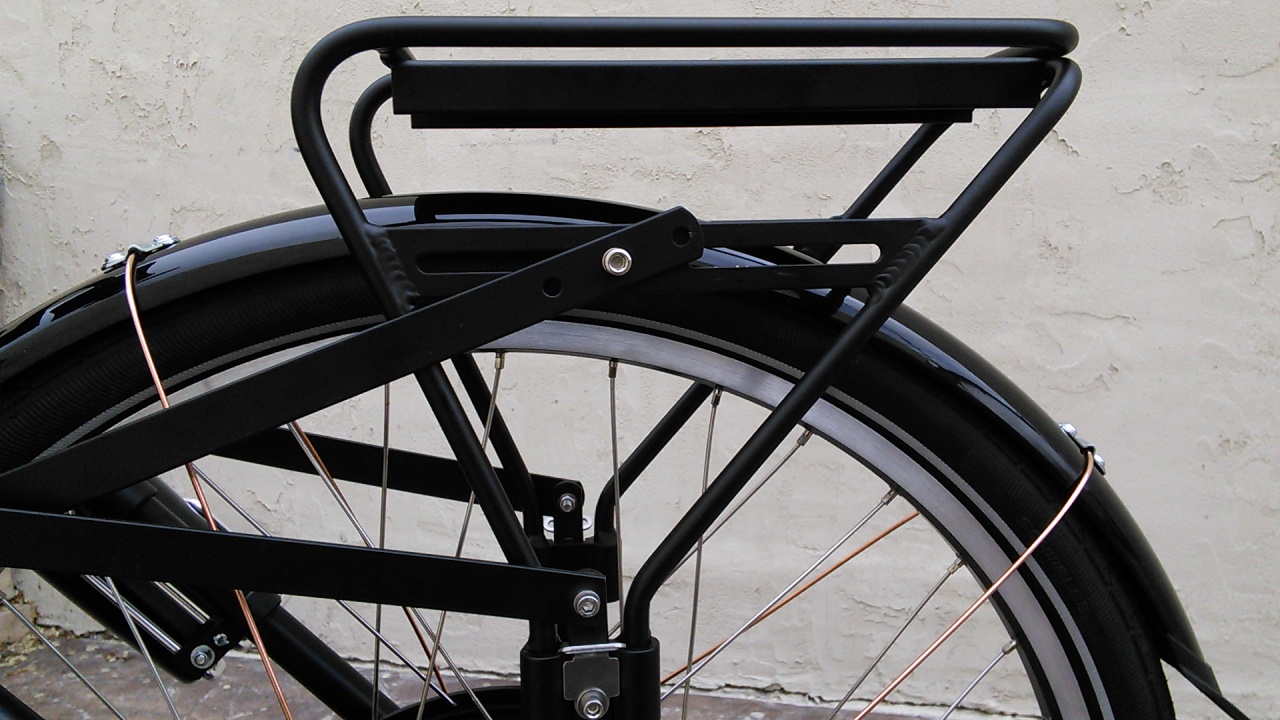

Utah Trikes Adjustable Aluminum Cargo Rack - This adjustable rack can be used on many trikes. It includes a variety of hardware and is very adjustable.


 -

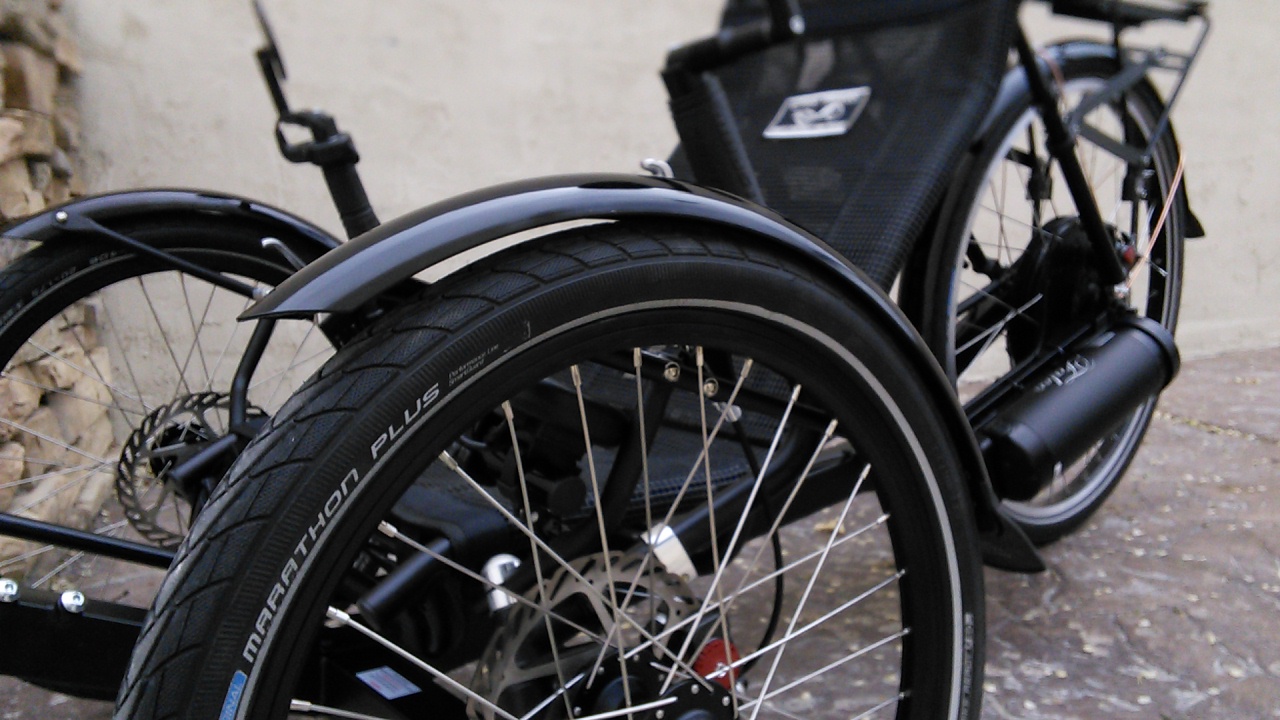

KMX Kobra Fender Set - This front fender set was specifically designed to fit the KMX kobra 20in front wheels and 26in rear wheel.


 -
Double Mirrycle Mirrors - The Mirrycle Mirror is by far the most popular mirror for recumbent trikes. It is well made, attaches to any 7/8in tube or handlebar and is easily adjustable. This is an essential safety item for anyone riding a recumbent bike or trike on the street. Why not double the safety with 2


 -

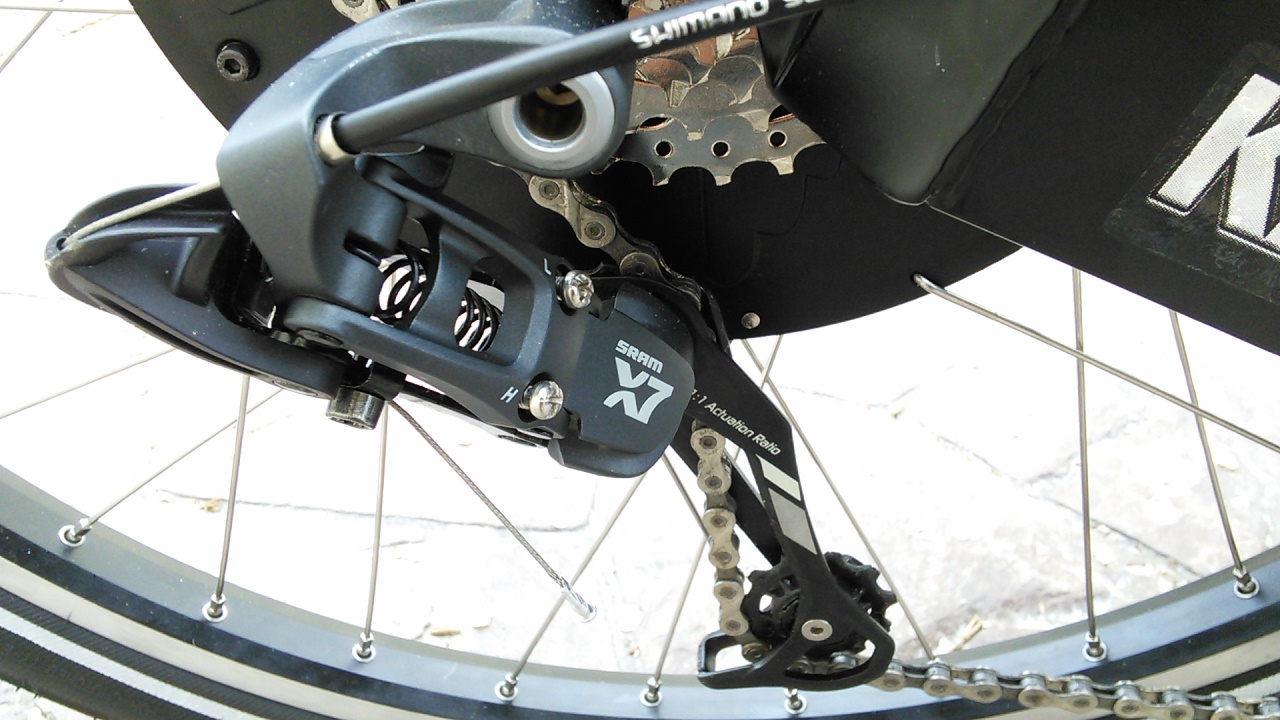

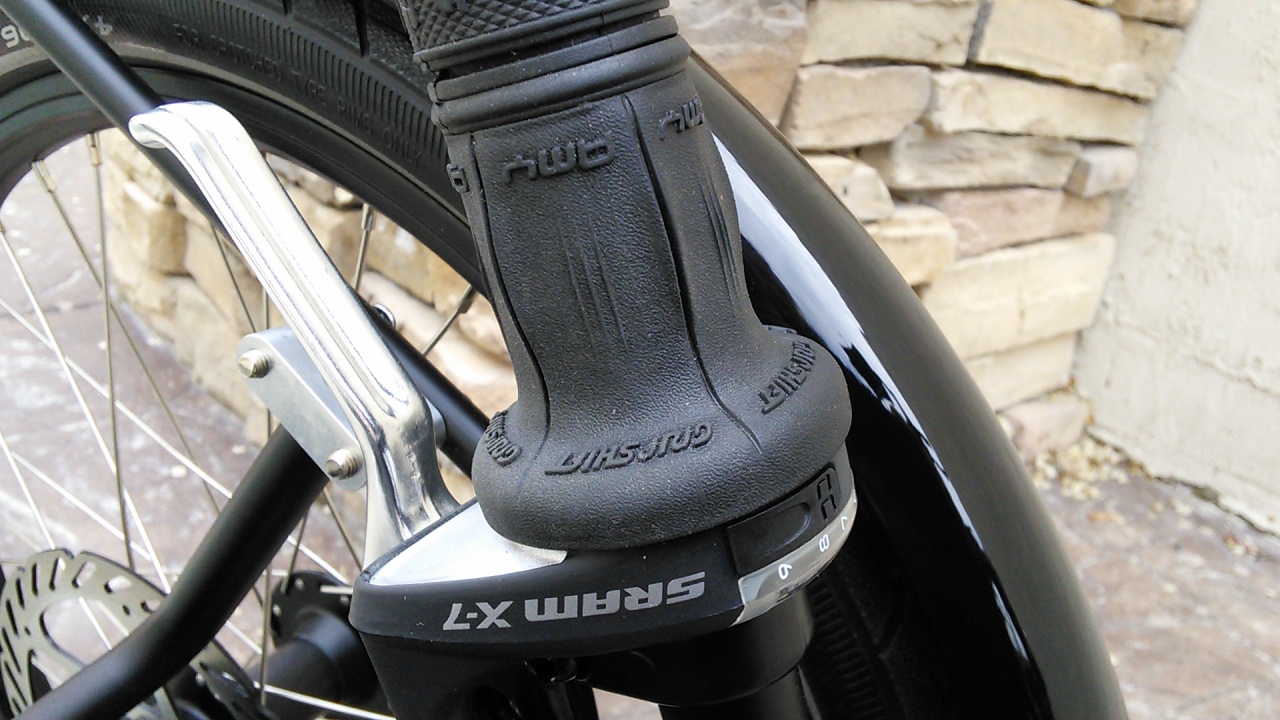

SRAM PG-950 11-34t 9sp Cassette, X7 Rear Derailleur, Grip Shifter, Chain - This 9-speed gearing system is tried-and-true. The included twist shifter is also very reliable.


 -


 -


 -
Falco Hx-500W-MT Hub Motor with Throttle - 5-Phase Motor Technology with integrated controller, 40Nm Max. Disc Brake, Free Wheel Adaptors, Torque Arm, Torque are included. Throttle is also included.
Battery, Freewheel, Torque Sensor, Consoles, and wheelbuilding are not included.


 -


 -

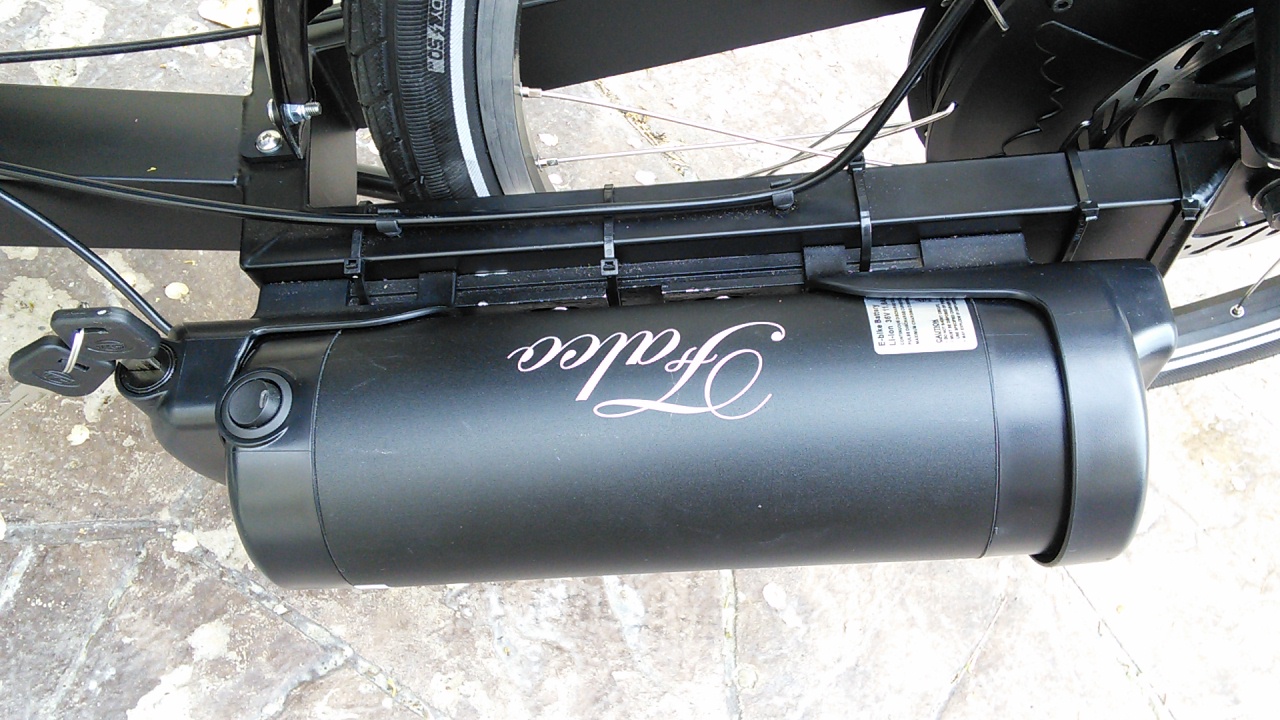

Falco Hx Bottle Battery Pack (Charger + Holder Included) 36V x 11.6Ah - The pack merely weighs 2.5 kg (5.4 lbs.) and it delivers 417Wh of energy (36V, 11.6Ah). The pack has a number of primary as well as secondary protections. The packs use Lithium Ion Rechargeable battery cells from Panasonic (Cell Model NCR18650PD). Typical cell capacity is 2880mAh and minimum cell capacity is 2730mAh. The packs uses 10S4p configuration.


 -
-


 -

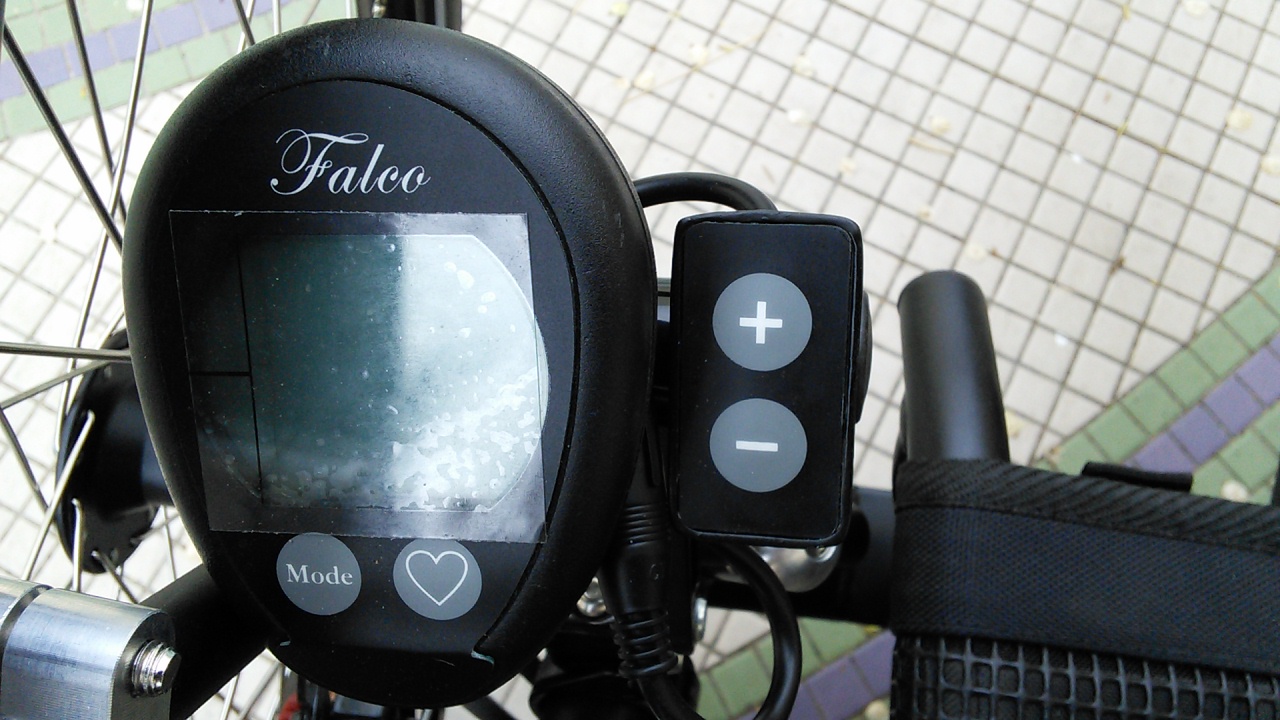

Falco Hxd Console + Charger (off-Road) - ANT+ Wireless Console including Buttons and Charger (Unrestricted)


 -
KMX Water Bottle and Cage - Kmx Water bottle and cage set. Water bottle cage fits all trike models


 -
Avid BB7 Rear Disc Brake Kit with Locking Brake Lever - Do you want a usable rear brake and not just something to keep the trike from rolling away? This kit adds a functional brake lever so you have total control. The lever features a locking pin so it doubles as a parking brake. We recommend combining this kit with our double-pull lever for the front brakes.


 -


 -


 -


 -
-


Get your own custom KMX Thunderbolt Motorized Recumbent Electric Trike
Check out our catalog for more options on how you can customize your trike
