Product Category: CatalogReturn Idler       View all TerraCycle products

Catrike Clamp On Elite Return Idler Kit by TerraCycle

$151.99 $141.99 SALE PRICE

Quantity:

Availability: At Least 8 In Stock
(also see availability of parts below)

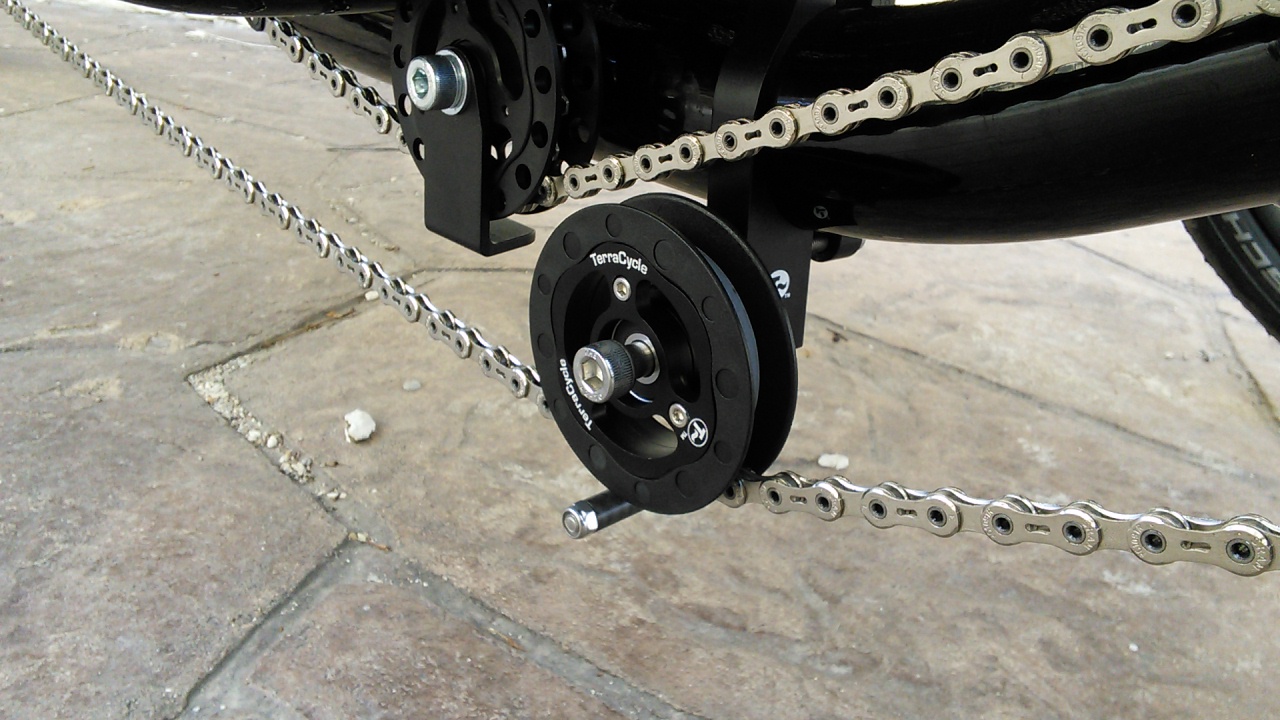

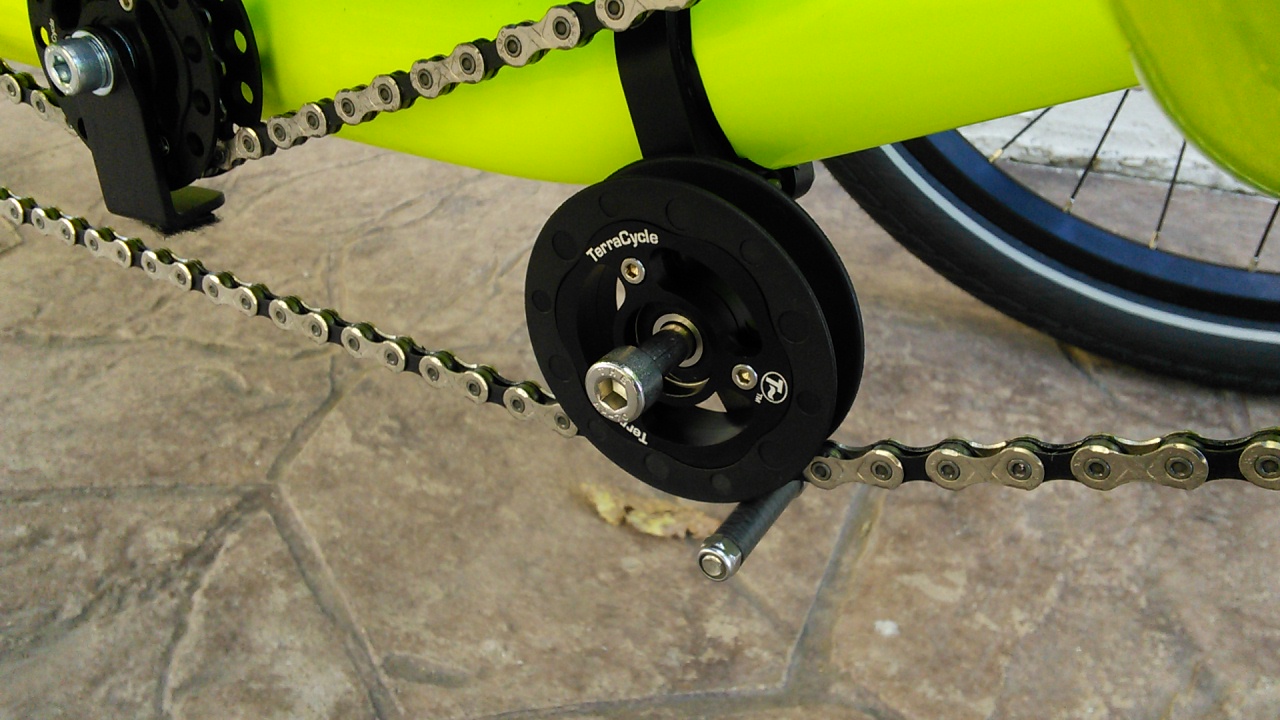

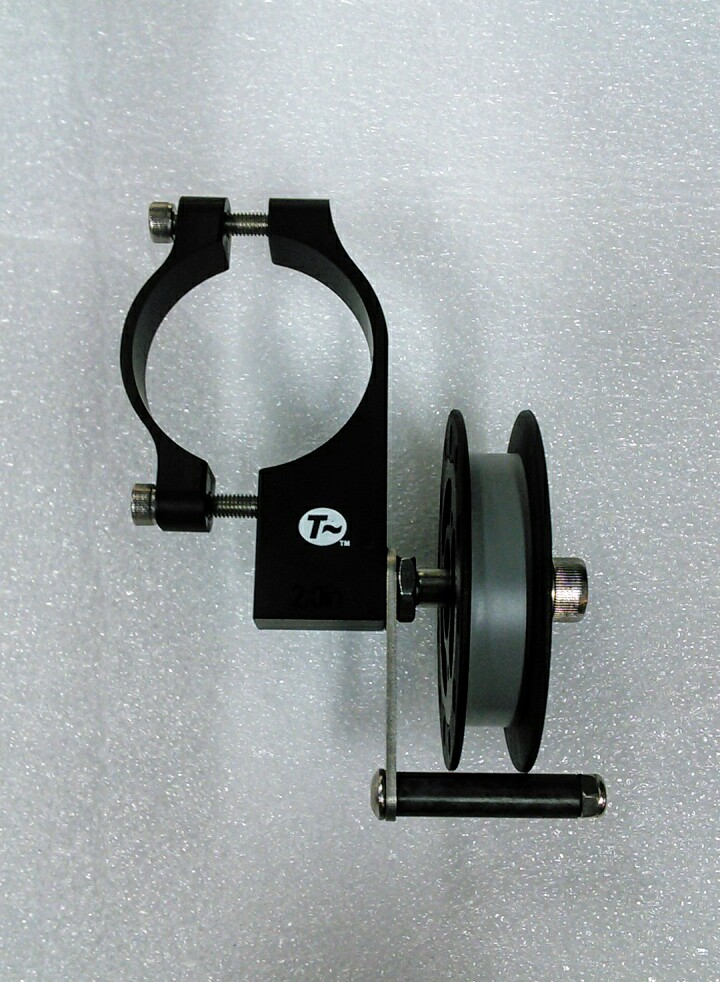

Terracycle Clamp on idler mount is composed of a Return idler, Single sided clamp on chain keeper, and custom stainless bolt. This kit is for Catrike Riders who wish to eliminate all of their return side chain tube by running the chain path through an additional idler. The kit can be mounted either in front of or behind the trikes cross arm depending on how where the boom is set for length.

This is a package product.
Use the "Add to Cart" button above to add the entire package to your order.

This package contains the following:

QTY 1

TerraCycle Elite Return Idler (10+ In Stock)
Nowhere will you find a better return idler than the Elite Return Idler from TerraCycle. The first thing you'll notice is its super-tough, exquisitely machined construction, then the beautiful aerospace-grade nylon sideplates, the supremely durable industrial urethane chainbed and the immaculately designed inner cores. Then there's the bearing: either a top-quality ABEC-7 steel bearing or the unbeatable resilience and consistency of the precision hybrid ceramic bearing. Never has a ride been so smooth and so reliable as with an Elite Return Idler.
8mm Ceramic Hybrid Bearing

Individual Price: $67.00


QTY 1

TerraCycle 2in 3 Hole Clamp On Idler Mount (3 In Stock)

Individual Price: $39.00


QTY 1

TerraCycle Stainless Steel Single Chain Keeper - 33mm (10+ In Stock)
This chain keeper is designed for use with 14T Terracycle power idlers, and return idlers mounting to 8mm bolts.
This is required for all idler upgrades, but is included in most idler kits.

-33mm Keeper Length

Individual Price: $14.00


QTY 1

Custom 8mm x 40mm Bolt with 25mm Shank with enough thread to allow single chain keep plus jam nut (10+ In Stock)

Individual Price: $9.95


QTY 1

8mm Half Nut (10+ In Stock)

Individual Price: $1.00


This is the same setup as the Catrike Front Idler kit, but used with a return idler used in place of the power idler.

Notes: This upgrade kit is not for everyone. If your boom is not extended very far, or you don't have a problem with chain scraping on the top of the crossarm, we recommend you stick with what you've got. This kit is for those situations where running the power side chain over the top is a problem. Usually it's not. Moving the power side chain under the crossarm can lead to other problems on trikes that don't need it, like rubbing on the bottom of the deraileur cage in low gear. If the chain is low enough to be a problem on top, then the deraileur clearance is fine when you move it to the bottom. Move it when you don't need to, though, and it won't work.

We also offer a version of this kit that does away with the last remaining bit of chain tube on the return side. This version is restricted for use with trikes where the return chain coming off the bottom of the big chainring needs to be deflected downwards to get under the crossarm. If this is the case with your trike, and you'd like a power/return idler pair below and in front of the crossarm, please contact us. Since this is an uncommon situation, we want to make sure this is what is really needed before sending off parts to you.
