UTCustom Standard Dropout Conversion w/Brake Mount for 2019 and Later Catrikes w/Thru Axle

$150.00

See availability of parts below

In mid-2019 Catrike changed their dropouts on all trikes with 26in rear wheels (Dumont, 559, and Expedition) and switched to a thru axle hub. This same dropout was introduced on the Eola. The UTCustom bolt-on conversion allows you to use standard hubs, internal geared hubs (Nuvinci, Alfine, Rohloff, etc.) As well as hub motors. Brake caliper mount is also included. Conversion extends the wheelbase by 36mm. Mounts, bolts, derailleur hanger, and front fender mount are included.

This is a package product.
Use the "Add to Cart" button above to add the entire package to your order.

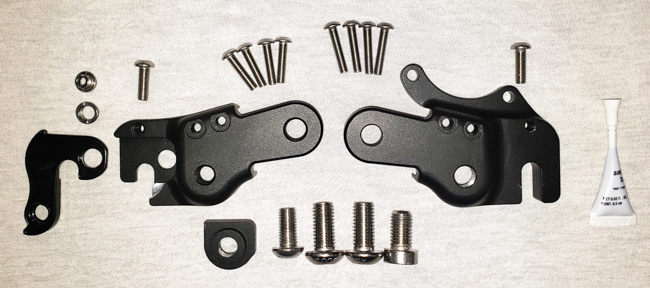

This package contains the following:

QTY 1		Drive Side Plate (10+ In Stock) This item is currently not available separately

QTY 1		Non Drive Side Plate (10+ In Stock) This item is currently not available separately

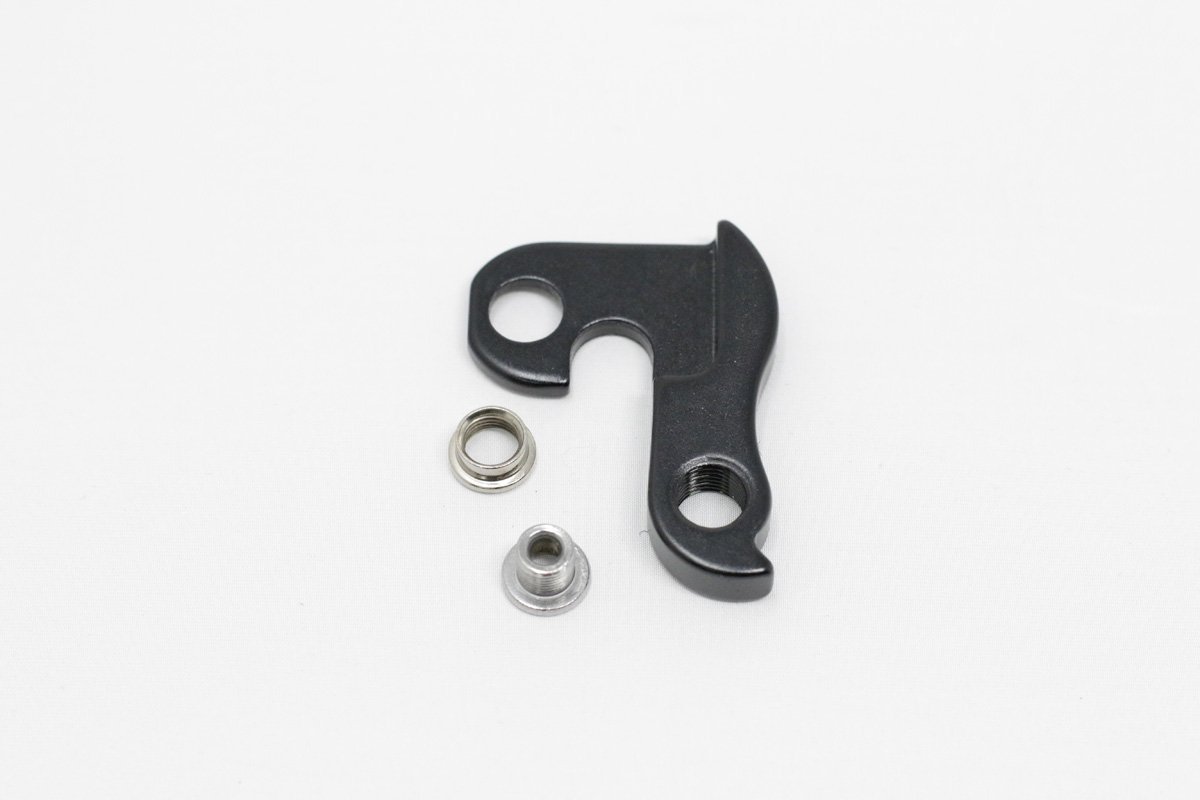

QTY 1		Catrike Derailleur Hanger #45 w/Hardware (10+ In Stock) This will fit ALL Catrike models Individual Price: $40.00

QTY 1		Loctite (Blue) (10+ In Stock) Individual Price: $10.00

QTY 1		Spacer For Drive Side Plate (10+ In Stock) This item is currently not available separately

QTY 1		35mm Spacer (10+ In Stock) This item is currently not available separately

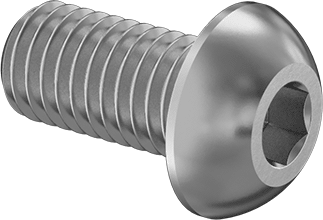

QTY 1		M10 x 20 (Button Head) (10+ In Stock) This item is currently not available separately

QTY 2		M6 x 20 (Button Head) Individual Price: $1.00

QTY 4		M5 x 30 (Button Head) (4 In Stock) Individual Price: $1.00

QTY 1		M5 x 45 (Button Head) (10+ In Stock) Individual Price: $1.00

QTY 4		M5 x 25mm Bolt (Button Head) (10+ In Stock) Individual Price: $1.00

QTY 2		M12 x 25 (Button Head) (10+ In Stock) Individual Price: $1.00

QTY 1		M12 x 20 This item is currently not available separately
