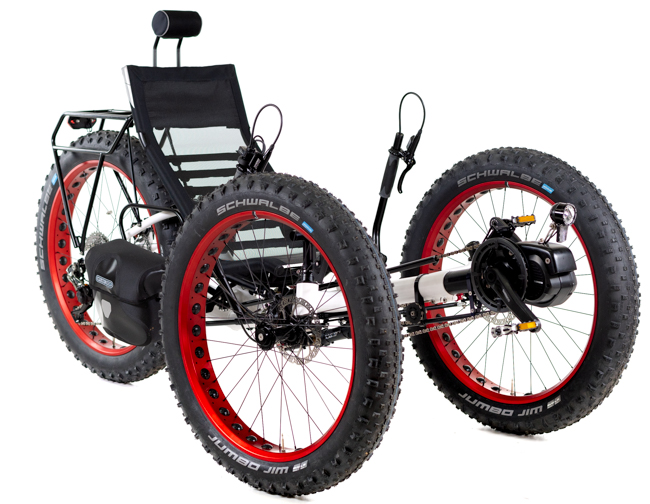

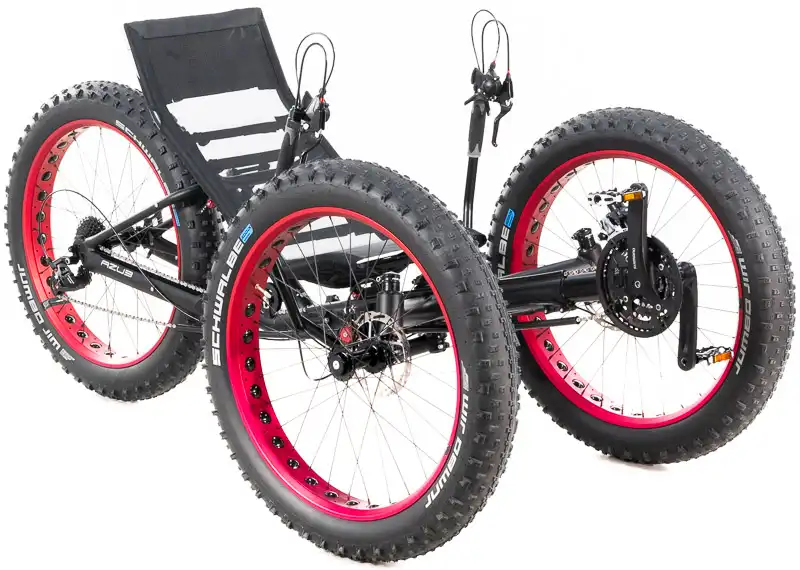

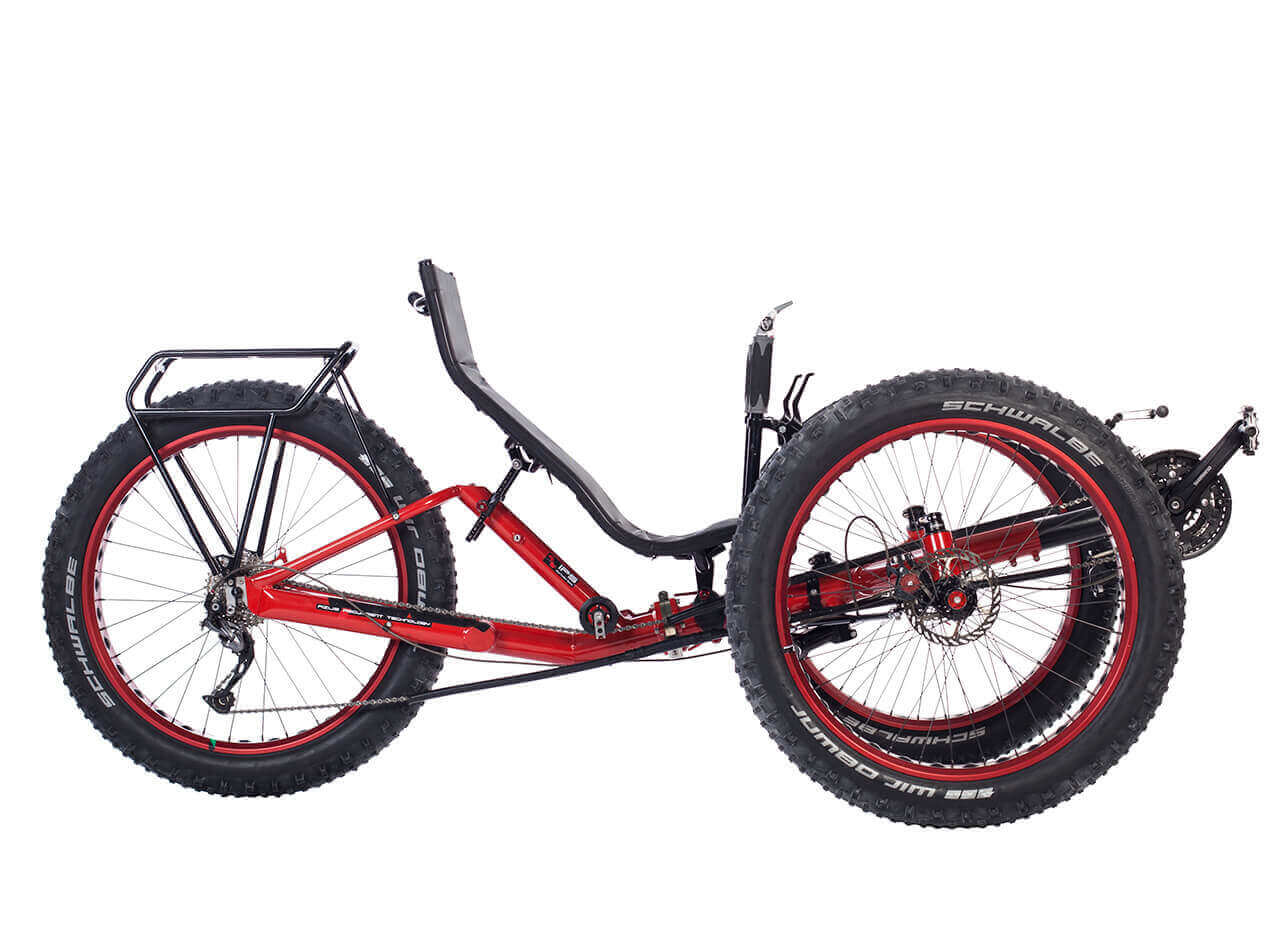

2019 Azub Fat Recumbent Trike

Starting at $4990

Availability: Call for Availability

The Azub fatty is a bike that is simply irresistible at first sight. It looks so huge, as if it did not even belong to the cycling world and yet riding it is a fast and smooth experience.



Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details

Please note that we do not charge for assembly and actual shipping costs to you are subsidized by Utah Trikes. Optional items chosen through our Trike Configurator will be installed on the trike prior to shipping. Any price differences shown between items here and our standard parts catalog reflect the cost of installation and/or additional hardware needed to install the item. If you would like to install the item yourself please choose the options separately through our catalog. Also note, our trike customizer calculates the price difference between the stock component configuration and the many upgrades that we offer. When you choose upgraded parts through this customizer you will not get the stock parts as the Trike Configurator calculates the price difference between parts. If you want all of the stock parts in addition to the upgrades you must choose the stock trike from here and then choose the full-price replacement components from our catalog. We are adding new options all the time. If there is an option you want us to add let us know. Please contact us if you have any questions.

Places others cannot reach

Our fatty is a bike that is simply irresistible at first sight. It looks so huge, as if it did not even belong to the cycling world and yet it makes you feel that riding it will be a fast and smooth experience. And when you actually sit on it, your feelings grow into complete euphoria. The fully adjustable ergonomic seat feels like a throne fit for a king. The view is absolutely thrilling two massive wheels on the sides and the road in front of you. I wonder how many potholes there might be, or what terrain will this beauty cope with you will immediately start thinking. Well, think definitely big it will cope with much more challenging terrain than any other tricycle could.

Gravel, beaches, snow!

The massive tires provide both suspension and sufficient grip. If the conditions look that they might be getting worse, we recommend underinflating them. AZUB FAT is at home on crushed stone roads, woodland paths, on beaches or in snowfall. You wont ride through large snow drifts, though it will definitely make riding in extreme conditions much easier.

Finely tuned

To make sure this trike would be perfect for you, we have worked hard on the components as well. The basic equipment includes red anodized rims with two rows of holes made in Italy, excellent hubs with industrial bearings and four inch Schwalbe Jumbo Jim tires. However, you can also go for such delicacies as the FAT version of the popular 14-speed Rohloff gearbox or the 18-speed Pinion P1.18, which provide the much needed very slow gears, so suitable for the FAT trikes. With these gears you will be able to manage even some very steep climbs. The whole range is then supplemented by many accessories, such as the ultra-durable rack by the famous German brand Tubus, built specifically for bikes of the FAT type.

Compact when riding as well as in transport

One of the reasons cyclists like our FAT so much is its overall compact dimensions. The very short rear fork increases the load on the rear wheel, which is crucial for effective exerting of power on rough surfaces. Nevertheless, the compact dimensions also contribute to the fact that after folding the FAT takes up relatively little space. In combination with the painless F2F (Fold to Flat) folding system, easily removable wheels and seat that is also removed for transport, you get several relatively small packages that can be carried in the trunk of your car.

Smooth adjustment of the seat

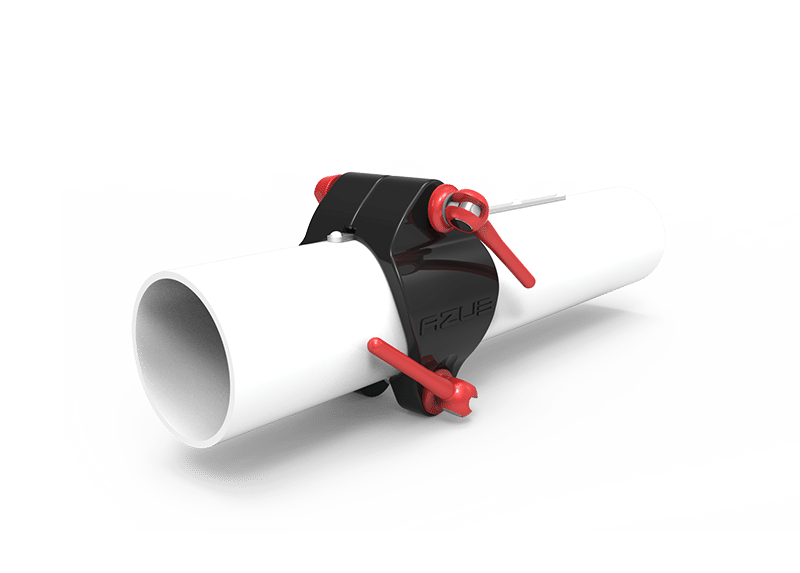

Ever since we started back in 2000, we have always thought that a bike should adapt to the rider and not the other way round. Thats why we used an adjustable seat for our first bike, in which both the angle and the pedal distance were adjustable. With each further development stage, we introduced a more accurate adjustment, until 2013, when we reached a stage of adjusting without positions. This concept is based on a sliding sleeve, which we produce in a straight version for our tricycles and some bicycles, as well as in a curved version for recumbents.

F2F - Fold To Flat

The folding mechanism on our tricycles is positioned in such a way that when you start folding the rear of the frame, the trike slowly turns and the rear wheel ends up folded flat. You also remove the seat and, if necessary, also the wheels, so the resulting package is remarkably small.

Detailed Specifications

Total Weight Capacity 275lbs (125kg)
Wheelbase 48in (1220mm)
Wheel Track 31.5in (800mm)
Total Length 78.75-88.5in (2000-2250mm)
Total Width 36.25in (920mm)
Total Assembled Height 31.8-39.4in (810-1000mm)
Ground Clearance 9.65in (245mm) w/4.8 Tires
Bottom Bracket Height 19.75-20.75 (500-530mm)
Seat Height 17-17.75in (430-450mm)
Seat Angle 34-52 Degrees
