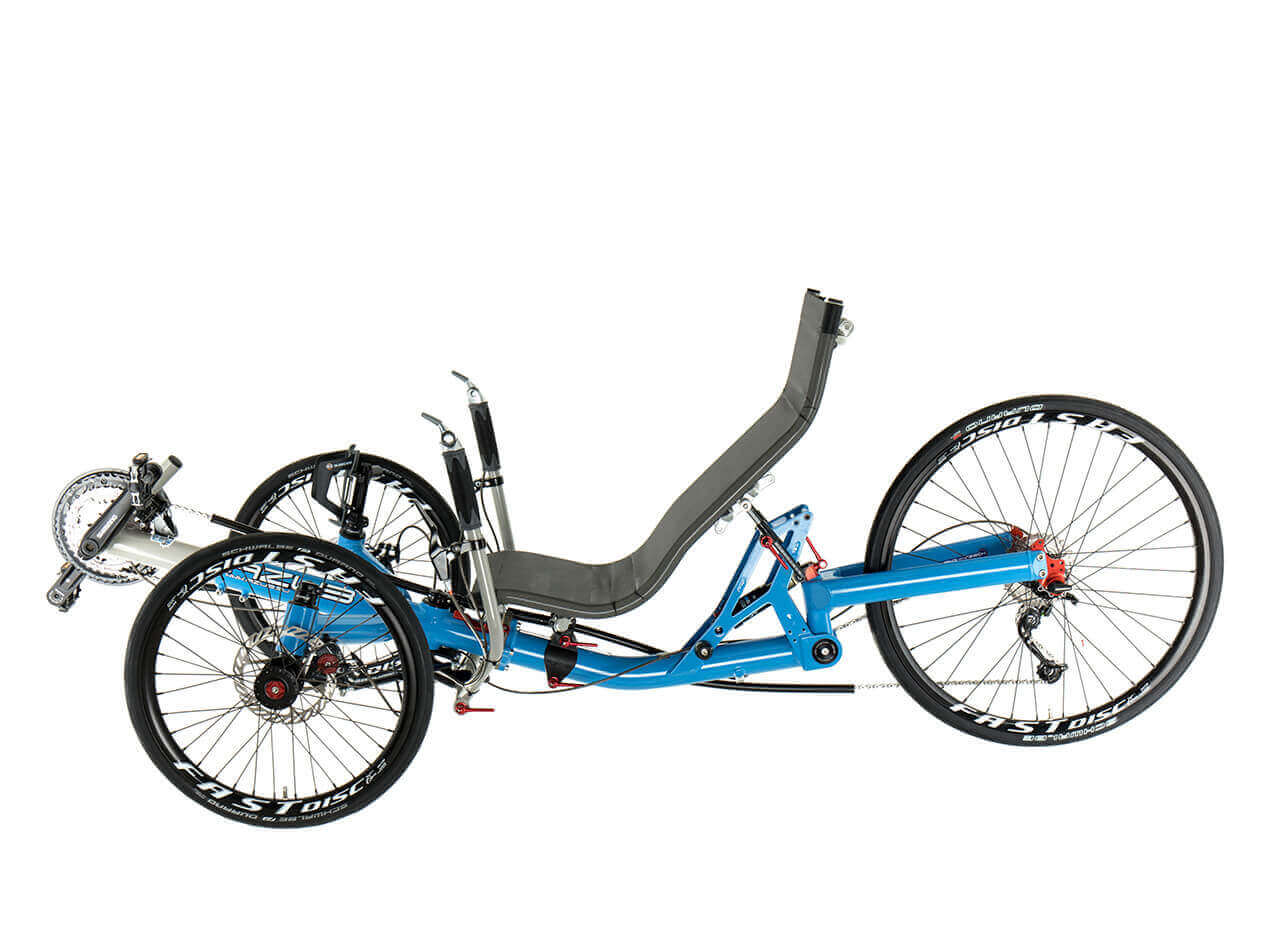

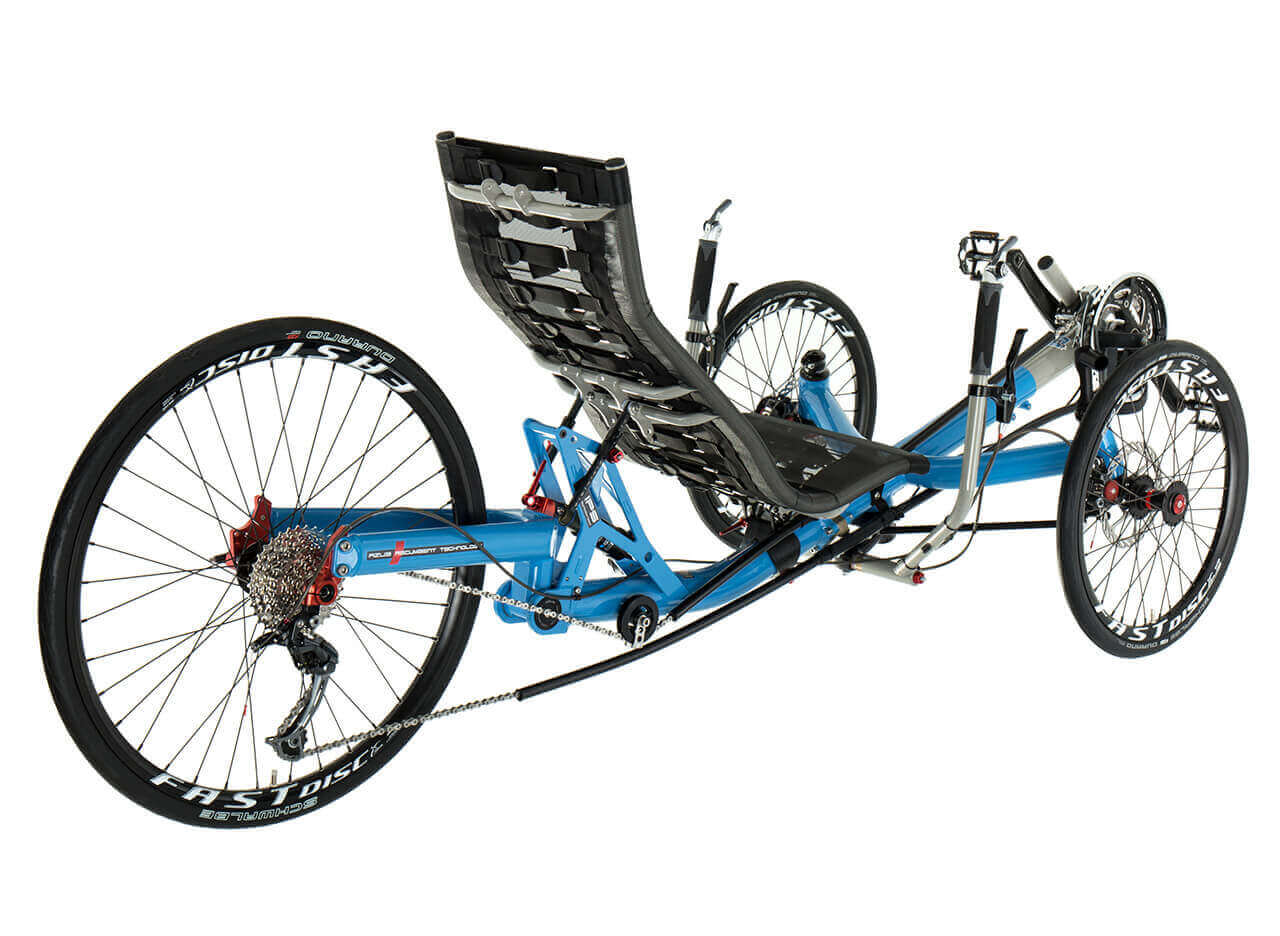

2019 Azub TRIcon 26 Recumbent Trike

Starting at $3990

Availability: Call for Availability

The Azub TRIcon 26 won 2015's Trike of the Year award. Comfortable, Fast, Engineering Perfection. You'll definitely notice Azub's attention to detail with their perfectly machined and anodized parts. This trike is as fun to look at as it is to ride.



Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details

Please note that we do not charge for assembly and actual shipping costs to you are subsidized by Utah Trikes. Optional items chosen through our Trike Configurator will be installed on the trike prior to shipping. Any price differences shown between items here and our standard parts catalog reflect the cost of installation and/or additional hardware needed to install the item. If you would like to install the item yourself please choose the options separately through our catalog. Also note, our trike customizer calculates the price difference between the stock component configuration and the many upgrades that we offer. When you choose upgraded parts through this customizer you will not get the stock parts as the Trike Configurator calculates the price difference between parts. If you want all of the stock parts in addition to the upgrades you must choose the stock trike from here and then choose the full-price replacement components from our catalog. We are adding new options all the time. If there is an option you want us to add let us know. Please contact us if you have any questions.

Trike of the year 2015

When you sit in the TRIcon 26 for the very first time, it immediately becomes clear why this trike has won the title Trike of the year 2015. Just settle comfortably in the ergonomic seat, sit back and start pedalling. The first two or three corners will give you a taste of the best advantages of our revolutionary 26” rear wheel solution. The shortest possible stiff fork with the 157mm wide Syntace solid through-axle design that we “borrowed” from mountain bikes, work an absolute miracle. What previously was unthinkable in the world of tricycles with a 26” rear wheel suspension has now become a reality. Yes, we are talking about fast cornering with minimal rear wheel flex while making you feel that the trike is absolutely stable and reacts accurately and instantly to any correction of the direction coming from the handlebars. And this feeling sure is absolutely exhilarating.

Attention to detail, beauty of the whole.

All the above mentioned is complemented by the prized characteristics of the dimensionally smaller but older brother, the TRIcon 20. These include a very comfortable rear suspension due to a genuine cycling shock, perfectly tuned steering, excellent power transmission, comfortable seat and the F2F-U (Fold to Flat Ultra) folding system which allows the trike to be folded not only in half but which also allows the rear fork be rotated below the frame, thus reducing the overall size of the trike when completely folded. Nevertheless, for many people the appearance of their TRIcon 26 is an important factor as well. And in this sense, the trike is truly unique. Emphasis has been placed on details such as the red bowden ends, the removable anodized rear fork dropouts, the wonderful quick releases or the cleverly shaped front wheels caps. The TRIcon 26 simply exudes robustness and healthy aggression.

26 or 20?

“Shall I choose a trike with a 20 or 26 inch rear wheel?” This is one of the most frequent questions we get asked. Many people just like the look of the 26" rear wheel and for them it is the biggest factor when they are deciding, but there are some objective reasons why to opt for this size as well. The more so when you learn that we in AZUB have managed to eliminate one of the major disadvantages of a 26" tricycle with rear suspension – its immense flexion when cornering. The 26" wheel has more inertia and therefore it is better at maintaining speed on flat terrain and when going downhill. It is also easier to find the right combination of gears and components because the 559 size (26") is still more common than the 406 (20"). In addition, a larger wheel provides a higher level of comfort, since due to its size it is better at “coasting” potholes as the wheel doesn’t fall in so much, which in turn also makes the trike a little faster. And when you compare the TRIcon 26 with the TRIcon 20, the 26" wheel in the former gives it a kind of a more grown-up look. If we were to carry on comparing the 20" and 26" TRIcons, we must not forget to mention that the TRIcon 26 offers all the available “gimmicks”, including the rear Syntace X-12 solid-thru axle or the removable rear fork dropouts not found on the TRIcon 20. Although, technically speaking, there is no real need for them.

Smooth adjustment of the seat

Ever since we started back in 2000, we have always thought that a bike should adapt to the rider and not the other way round. That’s why we used an adjustable seat for our first bike, in which both the angle and the pedal distance were adjustable. With each further development stage, we introduced a more accurate adjustment, until 2013, when we reached a stage of adjusting without positions. This concept is based on a sliding sleeve, which we produce in a straight version for our tricycles and some bicycles, as well as in a curved version for recumbents.

Folding mechanism

In 2015, we introduced a new folding mechanism we are really proud of. We wanted to create a folding tricycle that would be adequately stiff and whose folding mechanism would be smooth and easy to operate. The feedback from hundreds of AZUB riders has confirmed that we have definitely accomplished what we had planned.

Folding handlebars

It took us hours and hours of thinking and discussions before we thought up and then designed probably the most sophisticated folding handlebars in the world of recumbent tricycles. We would rather not mention the number of prototypes we have made...

F2F U - Fold to flat ultra

In addition to folding the front part, you can also rotate the rear fork which is designed to fit neatly just below the rear of the frame. This will turn the tricycle into an incredibly small package which you can easily fit into the boot of a small car or into our carry case should you wish to take the trike for example on a plane. And the whole maneuver will take you no more than 5 minutes without the need for any tools.

Detailed Specifications

Total Weight Capacity 275lbs (125kg)
Wheelbase 48.75in (1238mm)
Wheel Track 29.75in (755mm)
Total Length 78-88in (1980-2230mm)
Total Width 32.8in (835mm)
Total Assembled Height 27.5-32in (700-820mm)
Ground Clearance 4.6in (117mm) - w/1.5 Tires
Folded Size 31x25.5x13.5in (790x650x340mm)
Bottom Bracket Height 15.5-18in (400-450mm)
