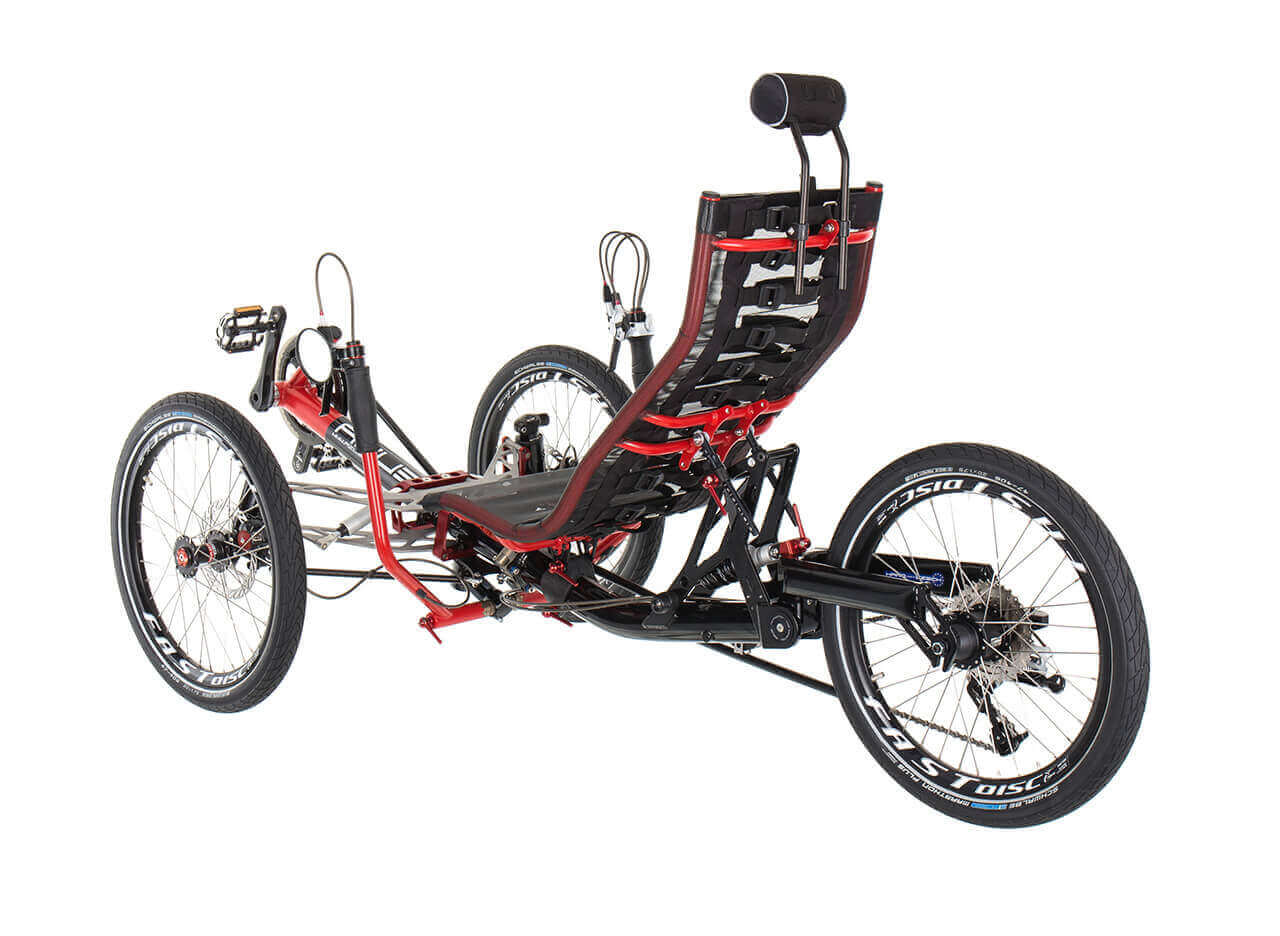

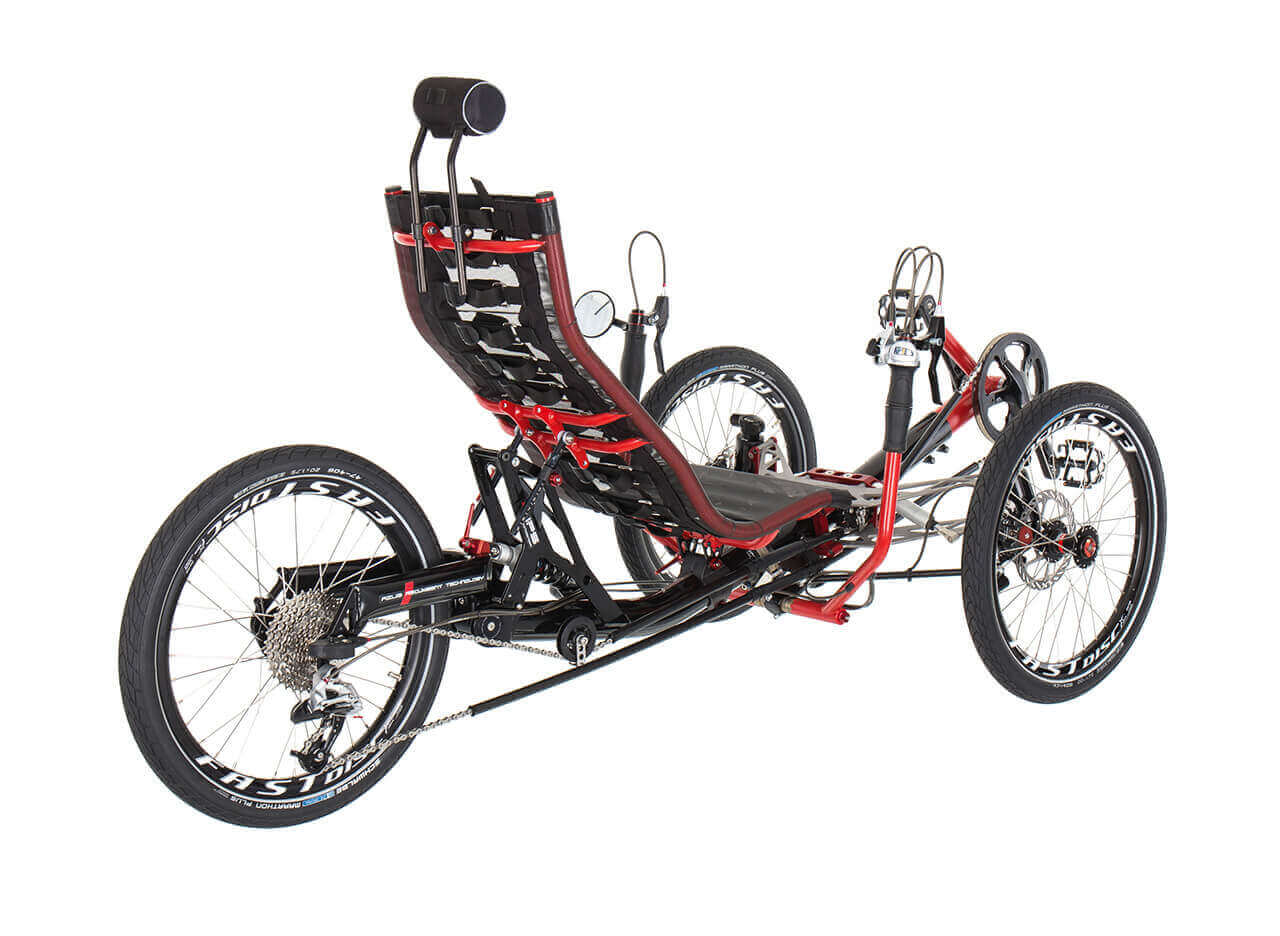

2020 Azub Ti-FLY 20 Full Suspension Recumbent Trike
Availability: Currently Out of Stock
Starting at $6190
The following trikes are available for immediate shipping from our Payson location:
Qty 1: AZUB Factory Color - Yellow RAL 1023
Worlds most advanced recumbent trike.
Cutting-edge technology meets stunning shape and excellent riding properties
AZUB Ti-FLY is the epitome of an intensive five-year development of our trikes. In 2015, our previous top model, the TRIcon 26 , was presented with the prestigious award Trike of the Year 2015, thanks to its superior workmanship, stable steering and the revolutionary design of the rear fork with a 157mm wide hub and a solid-through Syntace axle. In the Ti-FLY model, all these technical details are complemented by a unique technology of titanium front suspension, which makes it the most advanced trike in the world. Experience the comfort and amazing stability this trike offers.
Smooth adjustment of the seat

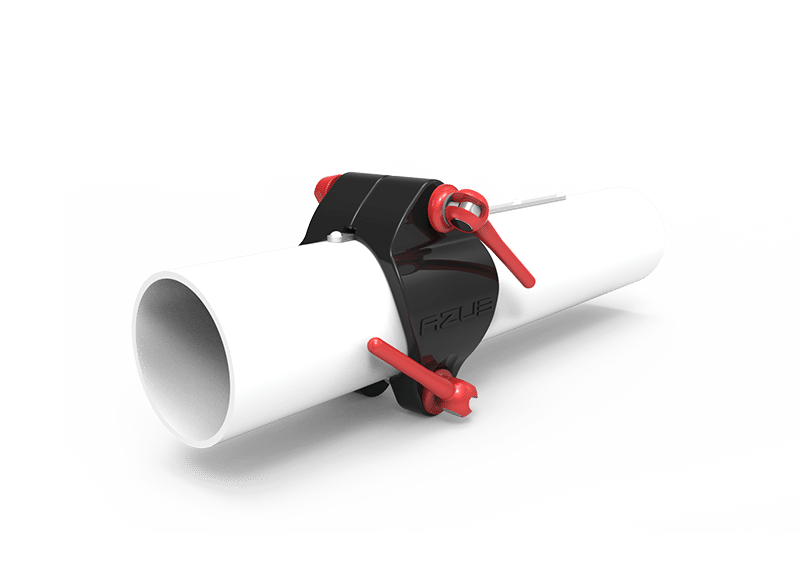

Ever since we started back in 2000, we have always thought that a bike should adapt to the rider and not the other way round. Thats why we used an adjustable seat for our first bike, in which both the angle and the pedal distance were adjustable. With each further development stage, we introduced a more accurate adjustment, until 2013, when we reached a stage of adjusting without positions. This concept is based on a sliding sleeve, which we produce in a straight version for our tricycles and some bicycles, as well as in a curved version for recumbents.
F2F U - Fold to flat ultra
In addition to folding the front part, you can also rotate the rear fork which is designed to fit neatly just below the rear of the frame. This will turn the tricycle into an incredibly small package which you can easily fit into the boot of a small car or into our carry case should you wish to take the trike for example on a plane. And the whole maneuver will take you no more than 5 minutes without the need for any tools.

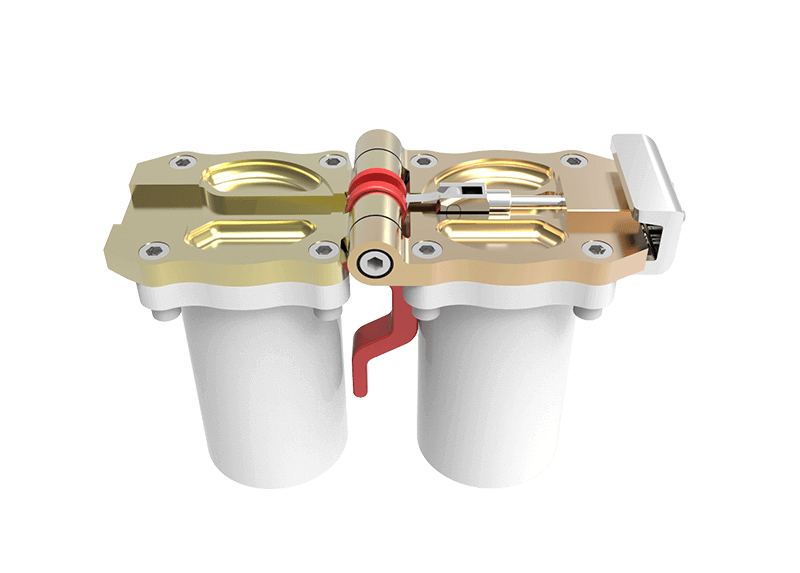

In 2015, we introduced a new folding mechanism we are really proud of. We wanted to create a folding tricycle that would be adequately stiff and whose folding mechanism would be smooth and easy to operate. The feedback from hundreds of AZUB riders has confirmed that we have definitely accomplished what we had planned.

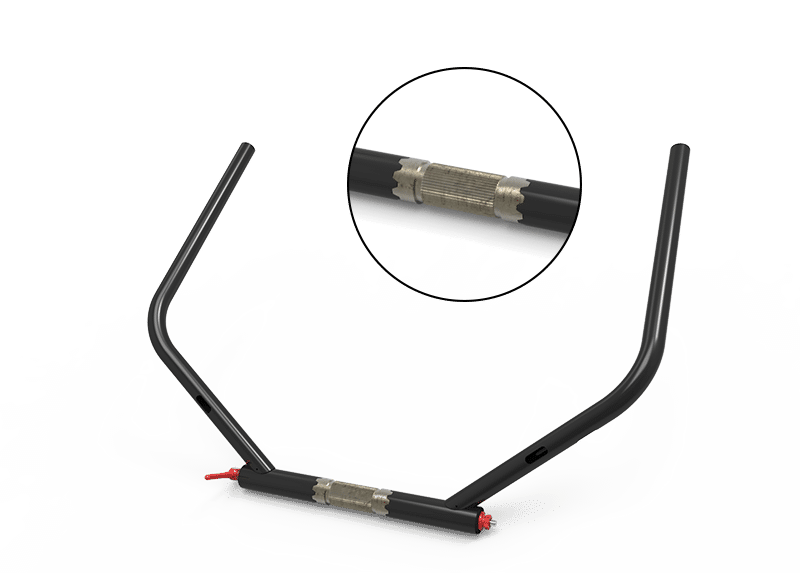

It took us hours and hours of thinking and discussions before we thought up and then designed probably the most sophisticated folding handlebars in the world of recumbent tricycles. We would rather not mention the number of prototypes we have made...
|Total Weight Capacity||275lbs (125kg)|
|Wheel Track||29.75in (755mm)|
|Total Length||73-83in (1850-2100mm)|
|Total Width||32.8in (835mm)|
|Total Assembled Height||27.5-32in (700-820mm)|
|Ground Clearance||4.5in (110mm) - w/1.5 Tires|
|Folded Size||31x27x13.5in (790x690x340mm)|
|Bottom Bracket Height||17-19in (430-480mm)|
|Seat Height||10-11.5in (260-290mm)|
|Seat Angle||34-52 Degrees|
