Bafang 1000W Middrive Motor Upgrade for CXS Trikes

$1,900.00

See availability of parts below

This powerhouse provides maximum power to the rear wheel. This will give you the best climbing power as well as the highest top speeds. It is paired with the 500C color computer console which allows you to program up to 9 levels of assist. Can be controlled automatically by pedaling or by using the throttle.

PLEASE NOTE, YOU WILL NEED THE FOLLOWING TOOLS TO DO INSTALL BBT-22 bottom bracket socket, and CCP-22C Crank puller.

This is a package product.
Use the "Add to Cart" button above to add the entire package to your order.
This package contains the following:

QTY 1		Bafang BBSHD 48volt 1000watt Motor Assist (10+ In Stock) This item is currently not available separately

QTY 1		UTCustom 48V 17Ah Li-ion Battery w/USB port (Hailong Case) Includes mounting sled and 2A charger. This high capacity battery features a USB outlet for charging phones and GPS. It has a key lock to prevent the battery from being removed. Individual Price: $599.00

QTY 1		UTCustom Torque Arm for Bafang Middrive Motors (For Catrike and CXS) Now available on its own is the UTCustom Torque Arm. This trike-specific part allows you to mount the motor under the boom. This torque arm is for trikes with a boom that have an outer diameter of 38mm-48mm (Catrike, CXS, EZ Tad and Defiance) Individual Price: $75.00

QTY 1		UTCustom Battery Mount for Sunseeker Fat Tad CXS This is a bolt on battery mount that uses CNC machined clamps to securely attach the battery to the frame. Comes with TWO clamps, and the sled mount bracket. Hardware also included This item is currently not available separately

QTY 1		Bafang 500C Color Display (10+ In Stock) Color Display, 9-Level Power, Battery Percentage, Speedometer, Trip Meter, Wattmeter, Integrated Power Switch Individual Price: $70.00

QTY 1		Motor Wiring kit (10+ In Stock) This item is currently not available separately

QTY 1		UTCustom Gear Sensor for Bafang Motors - For Derailleur Gearing (10+ In Stock) Save your gears with our gear sensor. The gear sensor attaches anywhere along the shifter housing. It sends a signal to the motor to reduce the load for a fraction of a second. This allows smoother shifting and keeps derailleurs from breaking. Individual Price: $39.00

QTY 1		UTCustom Brake Sensors For Bafang Motors (10+ In Stock) Keep your stock brake levers with these inline sensors. They have waterproof 3-pin connectors that work with our Bafang kits and UTCustom 1400W controller kits. Individual Price: $35.00

QTY 1		170mm Crank Arm Set for Bafang (10+ In Stock) This item is currently not available separately

QTY 1		Bafang Thumb Throttle for Mid Drive Motor (10+ In Stock) Individual Price: $19.99

QTY 1		UTCustom Computer Sensor Mount for Sun Trikes (10+ In Stock) Individual Price: $19.95

QTY 1		Bafang Speed Sensor and Magnet (1 In Stock) Bafang Replacement Speedo & Magnet Individual Price: $15.00

QTY 2		Bafang 14in Speedo Extension Cable (10+ In Stock) Bafang 14in Speedo Extension Cable BBSXX-SPDO-CBL-14 -This is a Bafang Speedo Extension cable for ebikes that need a little longer reach to mount the speedo. -Works on all bafang kits that take the bafang display (961,963,965, dpc 10 etc) Individual Price: $14.36

QTY 2		Bafang 23in Throttle/Brake Extension Cable (10+ In Stock) -23" Bafang three-pin cable extender -Extend your throttle, brakes, brake sensors, or gear sensor (they all use same cable type) This item is currently not available separately

QTY 2		Jagwire Sport Brake Cable Slick Stainless 1.5x1700mm Sport level brake cable fits most bikes/trikes at a quality level well above normal OEM cables. -Pre-stretched -SRAM/Shimano mountain compatible cable end -Stainless construction resists corrosion This item is currently not available separately

QTY 1		Jagwire Sport Derailleur Cable Slick Stainless 1.5x1700mm This item is currently not available separately

QTY 6		Ferrals This item is currently not available separately

QTY 4		Cable Crimp This item is currently not available separately

QTY 20		Zip Ties This item is currently not available separately

QTY 1		Bafang Tool (10+ In Stock) This item is currently not available separately

QTY 1		Loctite (Blue) (10+ In Stock) This item is currently not available separately

Featuring

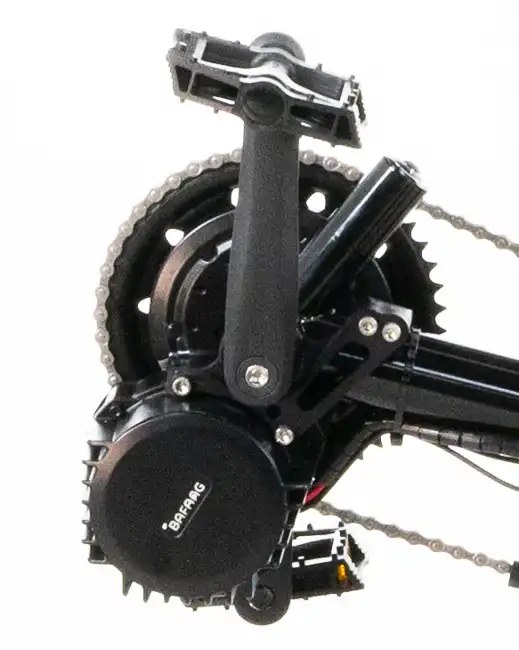

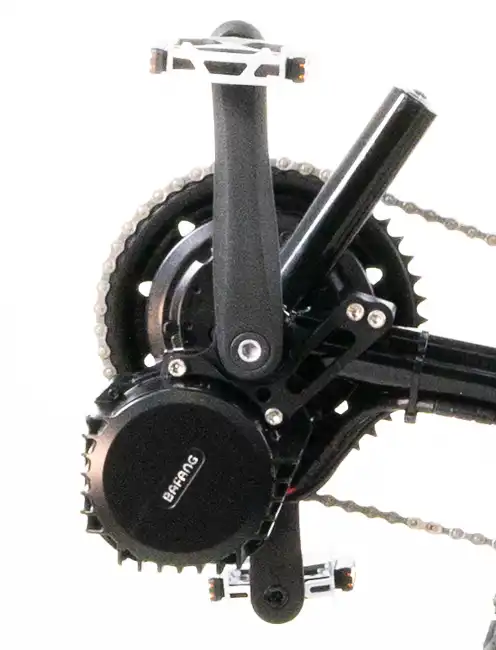

This kit includes a 1000 watt Bafang motor and 48 volt mounted battery. Featuring 160 newton meters of torque making it easy to get up those steep hills with ease. The Bafang motor has 9 pedal assist settings allowing you to cater the amount of assist you have while you ride. With a cadence sensor inside the motor for pedal assist it delivers quick and responsive pedaling action whenever you start pedaling. If your in for a more leisurely ride it also includes a thumb actuated throttle.

Looking for an Electric Motor?

Looking to upgrade your Sunseeker CXS with a powerful and efficient motor? Look no further than the Bafang 1000W Mid Drive Motor! The Bafang 1000w Mid Drive Motor is a great option for those of you who are really into off-roading or for those who always seem to be climbing steep hills. From a throttle activated motor, to a pedal assist this motor has it all and is ready for anywhere your ride takes you! The Bafang is a surprisingly quiet mid drive option that will add a lot of power to your ride. This is a great set up for those of you with a single chainring on your front crankset. Guaranteed to give you the boost you need while tearing through off-road terrain.
