Product Category: CatalogTrikes       View all KMX products

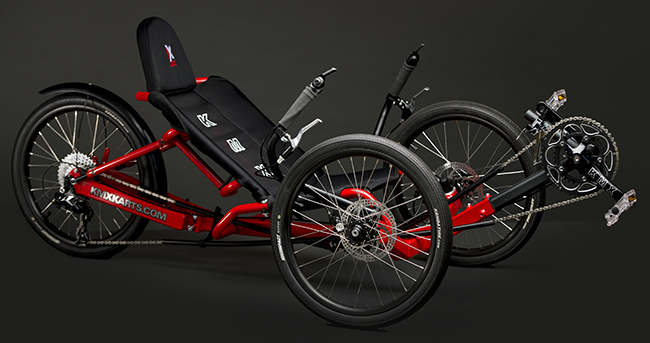

KMX Koyote Folding Aluminum Performance Recumbent Trike

Currently Unavailable

The Koyote is KMX's top of the line Folding Aluminium Performance Trike. The high quality components make this versatile road trike exceptional value for money.

The KMX Koyote features an extruded aluminium folding frame with internal strengthening system. It is simple and quick to assemble. Very robust and low maintenance.

Make Yours Electric!

We have 500W, 750W, and 1000W systems preconfigured under the FRONT GEARING option as well as other motor options. Of course, we can add additional batteries for increased range. Just let us know and we'll make sure you get the right setup!

Detailed Specifications

Frame Material Folding TIG Welded Aluminium
Trike Weight 17.5 kg
Total Weight Capacity 130kg
Wheelbase 105cm
Total Length 187cm
Total Width 84cm
Total Assembled Height 75cm
Ground Clearance 11 cm

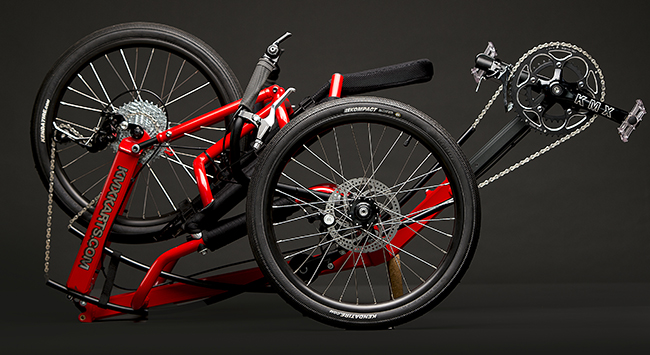

Folded Size Length:127cm,Width:84cm, Height:67cm
X-Seam Range Min 95cm. Max 116cm
Steering Type Direct Steer Multiple position handlebar
Seat Height 22cm
Country of Origin Taiwan / Designed in UK
