UTCustom Sun HT-3 Hand and Foot Cycle

$3299 Starting at $2999 SALE PRICE

Availability: 5 In Stock





Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details

Please note that we do not charge for assembly and actual shipping costs to you are subsidized by Utah Trikes. Optional items chosen through our Trike Configurator will be installed on the trike prior to shipping. Any price differences shown between items here and our standard parts catalog reflect the cost of installation and/or additional hardware needed to install the item. If you would like to install the item yourself please choose the options separately through our catalog. Also note, our trike customizer calculates the price difference between the stock component configuration and the many upgrades that we offer. When you choose upgraded parts through this customizer you will not get the stock parts as the Trike Configurator calculates the price difference between parts. If you want all of the stock parts in addition to the upgrades you must choose the stock trike from here and then choose the full-price replacement components from our catalog. We are adding new options all the time. If there is an option you want us to add let us know. Please contact us if you have any questions.

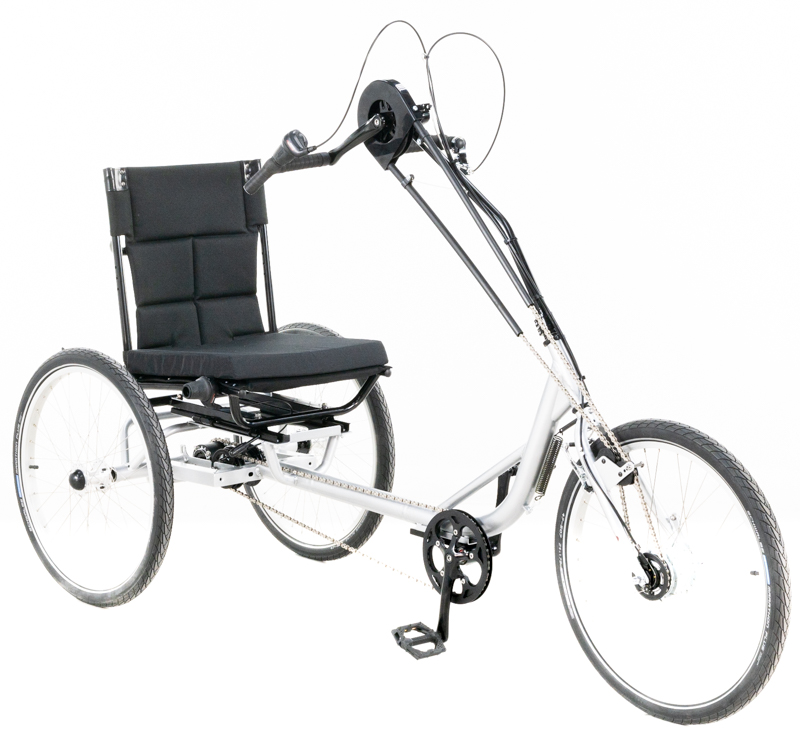

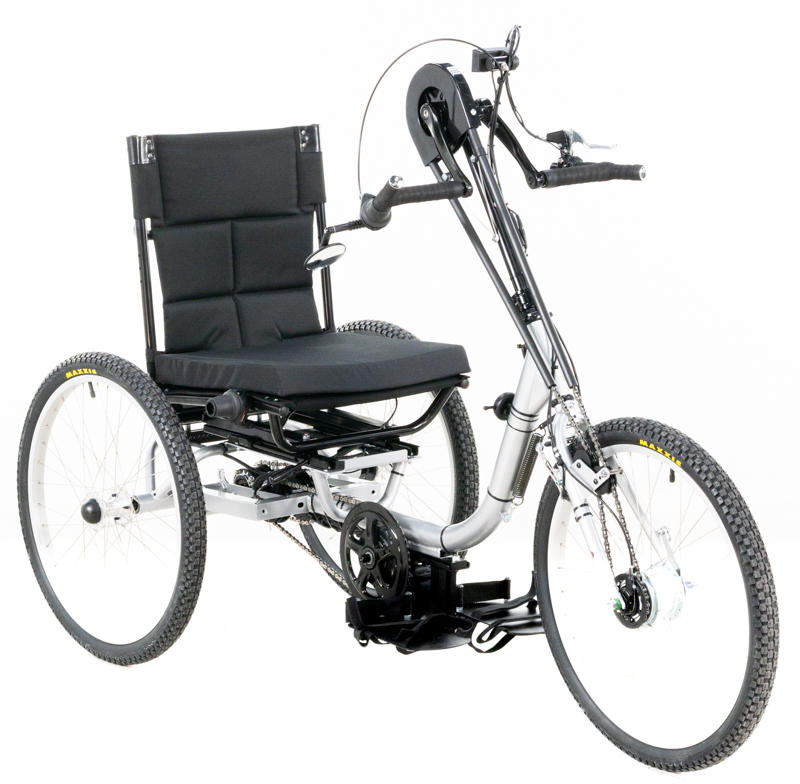

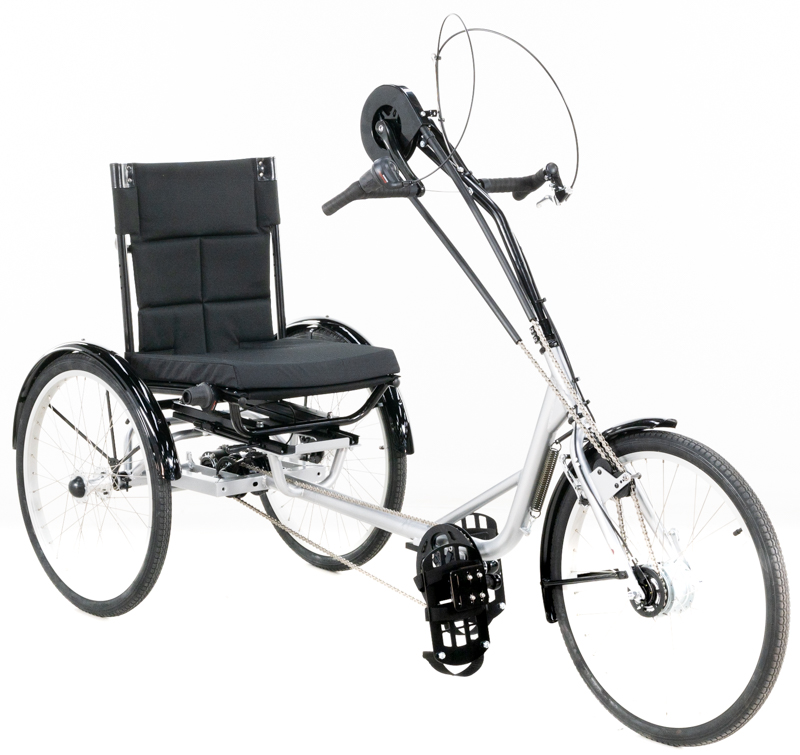

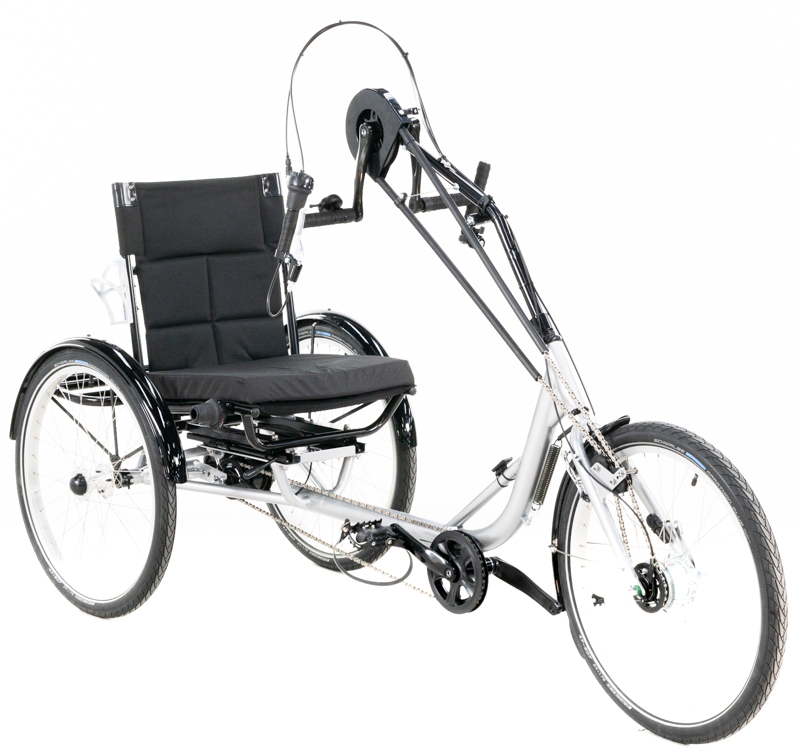

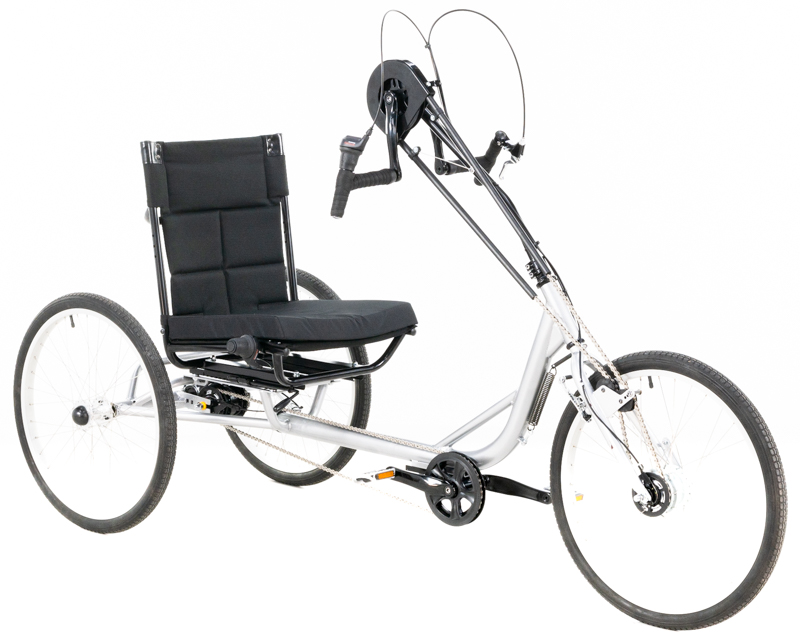

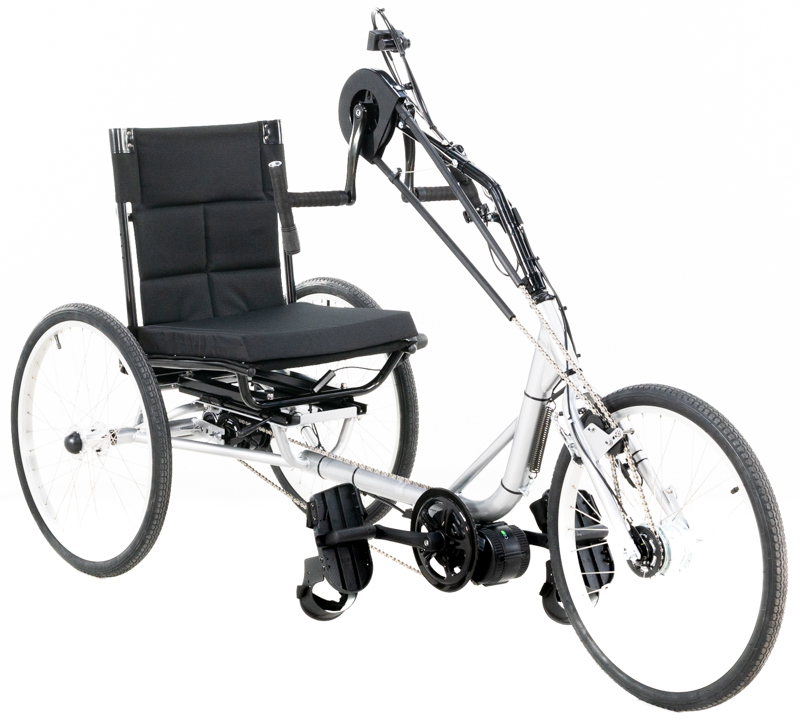

SUN HT-3 HAND AND FOOT CYCLE BY UTCUSTOM
Based off of the 8-speed Sun HT-3, this hand and foot cycle adds another drivetrain and can be powered by the hand cranks, the pedals, or both! Like the HT-3, its long wheelbase provides excellent stability, it can be pedaled with experiencing any wobble, and the 22 inch seat height makes it ideal when transferring from a wheelchair.

ADJUSTABILITY

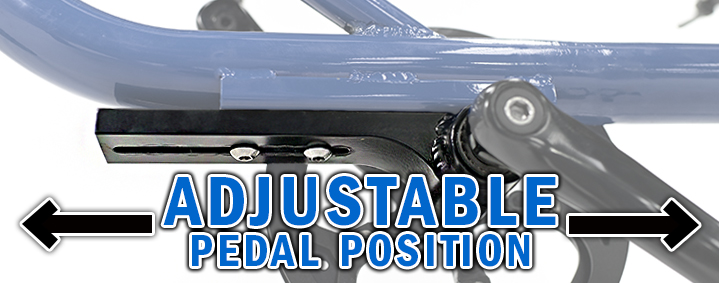

Like the stock HT-3, the hand and foot cycle is highly adjustable. We designed the bottom bracket for the pedals in such a way that you can move it to different positions along the frame. The custom fabricated boom can be raised and lowered as well to fit riders of different sizes. The seat can also be moved forward or backward by pulling the small lever on the right side of the seat, sliding it to the desired position and then releasing the lever.

BRAKING
The hand and foot cycle has two methods of stopping: a rim brake on the front wheel and the hand cranks. There is a locking brake lever located on the left craml that operates the rim brake. This brake doubles as a parking brake for when you are getting on and off the trike, this is especially helpful when transferring to the trike from a wheelchair.

To engage the parking brake, you need to pull on the brake lever, push and hold the locking pin, then release the brake lever. To disengage the parking brake, simply pull on the brake lever. Another really easy way to come to c complete stop is by simply rotating the cranks backward (toward the rider).

UT CUSTOM DIFFERENTIAL

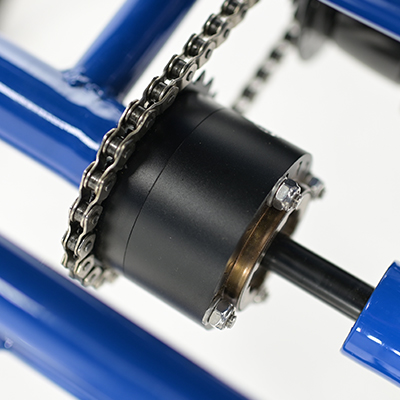

We're excited to offer the UTCustom Freewheel Posi Differential on the hand and foot cycle. It is the solution to slipping and tire scrub that trumps all solutions. With our differential you can ride anywhere while enjoying increased traction and power to the pedals.

Our design features a standard 16-tooth freewheel with a bolt-on chain ring. The whole unit can be taken apart and rebuilt or serviced, instead of having to replace the whole thing if, for some reason, one of the freewheels fails.

SHIMANO DRIVETRAINS
The hand and foot cycle has two separate drive trains: an 8-speed Shimano Nexus hub that's driven by the hand cranks and an 8-speed Shimano Alfine that's driven by the pedals. Both of these hubs have 8 gears that are housed internally, making them virtually maintenance free. You don't have to worry about a derailleur and you can shift these hubs while stopped or coasting. This is particularly useful with the hand cranks, as it can be a bit difficult to shift while also turning the cranks. The shifter for the front drivetrain is on the right-hand crank while the shifter for the rear drivetrain is mounted on the left side of the seat.

ENJOY THE WORKOUT
The HT-3 Hand and Foot cycle is great for anyone looking for increased mobility and an excellent upper body workout. This particular trike is great for riders with limited leg strength, but need exercise to strengthen those muscles. Having the hand cranks allows you to power the trike with your upper body, while providing much needed exercise to your legs.

Detailed Specifications

Trike Weight 78 Lbs
Wheelbase 26 1/2 In
Wheel Track 59 In
Total Length 7 Feet
Total Width 31 In
Total Assembled Height 50 1/2 In
Bottom Bracket Height Pedal BB 9 in - Hand BB 40 1/2 in
Seat Height 2 Feet
