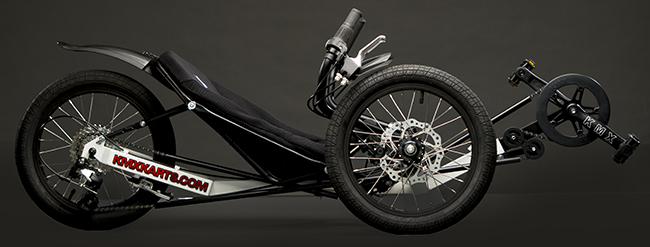

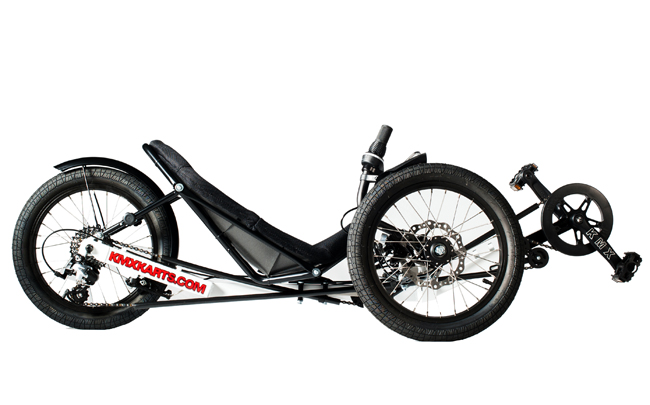

KMX Kompact R Trike for Small Riders

Currently Unavailable

Great for smaller people and kids of all abilities due to low center of gravity and high stability. The Kompact kid's recumbent trike has 11.5cm of Sliding Front Boom for easy rider height adjustment.

The Kompact R is a great trike for Children and small adults under 5-foot tall. For taller adults we recommend the KMX Typhoon.

Other Features include -Self adjusting chain tensioner. -Direct Steer for responsive handling. -KMX Hardshell Bucket Seat featuring multiple angle seat position and -15cm of fast and easy sliding adjustment. -Oversized Super Glide Pulley for smooth chain management. -Simple and quick assembly. -Very robust and low maintenance.

Download assembly instructions here

Tires: 16 x 2.3 Innova tyre rear 16 x 2.1 Innova tyre front
Wheels: 16 front spoked Wheels and 16 spoked rear Wheel (with wheel filler)
Gear Shifters: 7 Speed Microshift Twistgrip Gears
Brakes: Bengal Disc Brakes on front wheels activated by a twin pull brake lever and V brake on rear
Front Cranks: 42T one piece steel crank with KMX Bash ring
Derailleur: 7 Speed Microshift Derailleur
Gears: 7 Speed Cassette

AS FEATURED ON THE TRIKE SHOW

Detailed Specifications

Frame Material TIG Welded Hi Carbon Steel Box with Steel front boom
Trike Weight 40 LBS
Total Weight Capacity 165 LBS
Wheelbase 32 Inches
Wheel Track 24 Inches
Total Length 61 Inches
Total Width 28 Inches
Total Assembled Height 21 Inches
Ground Clearance 2.5 Inches
Bottom Bracket Height 12.5 Inches
X-Seam Range 32 Inches to 41 Inches
Steering Type Direct steering
Steering Pivot Type Sealed Bearing Headsets
Ackerman Steering Yes
Brake Steer None
Self Centering Yes
Center Point Yes
Turning Radius 10 Feet 6 Inches
Turning Circle 5 Feet 8 Inches
Seat Height 8 Inches
Seat Width 12 Inches
Seat Angle Adjustable between 39 and 45 degrees
Country of Origin Taiwan/UK
Warranty 5 Year Frame Warranty
Idler Chain Keepers KMX OEM Tubes, Idlers, and Keepers
