UTCustom Catrike Annihilator V-Series Recumbent Trike

$3750 Starting at $3350 SALE PRICE

Availability: Call for Availability

Dominate the trails and destroy your misconceptions about what a recumbent trike should be! The Annihilator V-Series gives you the high-seated, smooth-riding, crazy-gear-ranged trike to take you all over. We started with the Catrike Villager because it's AWESOME, and then we kicked it up several notches. The Annihilator is available in any one of our UTCustom colors and makes a fantastic electric trike.



Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details

Please note that we do not charge for assembly and actual shipping costs to you are subsidized by Utah Trikes. Optional items chosen through our Trike Configurator will be installed on the trike prior to shipping. Any price differences shown between items here and our standard parts catalog reflect the cost of installation and/or additional hardware needed to install the item. If you would like to install the item yourself please choose the options separately through our catalog. Also note, our trike customizer calculates the price difference between the stock component configuration and the many upgrades that we offer. When you choose upgraded parts through this customizer you will not get the stock parts as the Trike Configurator calculates the price difference between parts. If you want all of the stock parts in addition to the upgrades you must choose the stock trike from here and then choose the full-price replacement components from our catalog. We are adding new options all the time. If there is an option you want us to add let us know. Please contact us if you have any questions.

Looking for a high seat? ANNIHILATE IT!

Looking for a smooth ride? ANNIHILATE IT!

Looking for some awesome gearing? ANNIHILATE IT!

Dominate the trails and destroy your misconceptions about what a trike should be! The Annihilator V-Series gives you the high-seated, smooth-riding, crazy-gear ranged trike to take you all over.

We started with the Catrike Villager because it's AWESOME, and then we kicked it up several notches. Whew, I mean check out those specs below! We lengthened the wheelbase for better handling and then we kicked the front wheel size up to 24-inch using the SUPER STRONG Sun MTX rims.

SO MANY GEAR OPTIONS!
More gears means more better!
And we've got more options than ever!

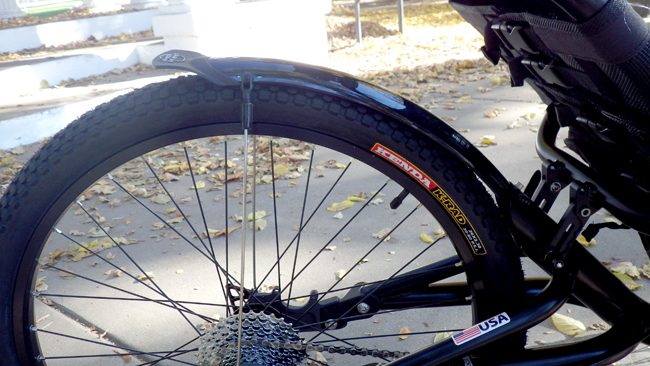

To sweeten the pot even further, we threw in our acclaimed Super Headrest, and then added to the sportiness by fitting a custom chopped fender in the rear. And, the Annihilator is ready for a rear disc brake for those riders who are planning to tear it up! Can you believe this?!? Can ya?!? HUH???

Want a motor?

We are building more and more electric trikes and the Catrike Annihilator V-Series is a great candidate for a motor. All of our motor kits allow you to choose the level of assist you want. That means that as you pedal the motor kicks in automatically providing additional power to your own pedaling efforts. We also provide a thumb-actuated throttle with our motor systems that act like the gas pedal in your car. Don't want to pedal? No worries, just push the throttle and go!

Custom Mounting
We make our own custom battery mounts to keep the weight down low and near the rear axle. This keeps the weight of the battery from affecting handling and puts the battery in an easily accessible spot of the trike. All our battery systems come with an AC charger and a two-year pro-rated warranty. We make our own mounts to put the control console, throttle, and other buttons where you need them.

Want a motor?
Motor options are available through the configurator above in the FRONT GEARING and REAR GEARING sections. Need something custom? Just let us know!

The Annihilator is available in any one of our 35+ custom colors, but we highly recommend the Satin Black for maximum coolness! C'mon, get the black one! (Or, any color you want. We really don't care.)

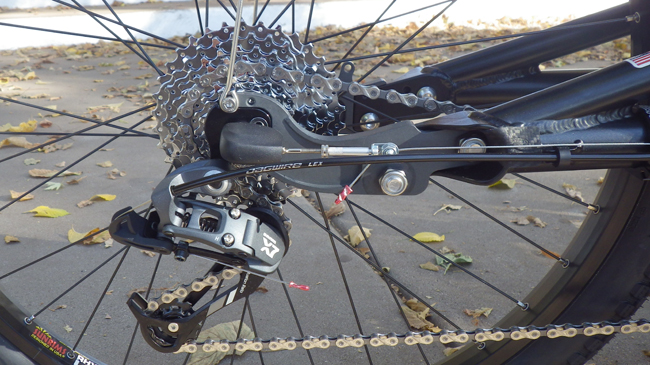

So many gearing options!

Use the configurator above to choose the gearing you want. This one pictured features 90-speed gearing with the Pinion C1.9XR Wide Range drive up front and the SRAM 10-speed cassette in the rear.

Detailed Specifications

Frame Material 7005 Hardened Aircraft Aluminum
Trike Weight 40 LBS
Total Weight Capacity 300 LBS
Wheelbase 42 Inches
Wheel Track 30.5 Inches
Total Length 83 Inches
Total Width 34 Inches
Total Assembled Height 38 Inches
Ground Clearance 8.5 Inches
Bottom Bracket Height 19.5 Inches
X-Seam Range 34-53 Inches
Gear Inch Range 18.3-163.8
Steering Type Direct steering
Steering Pivot Type Independent Sealed bearing FSA Headset
Ackerman Steering Yes, of course!
Brake Steer Minimal
Self Centering Yes
Turning Radius 9 feet
Turning Circle 18 Feet
Seat Height 16.5 Whopping Inches!!
Seat Width 14 Inches
Seat Angle 41-51 Degrees
Country of Origin USA (And we can Prove it!)
Warranty 5 Year Frame Warranty
Idler Chain Keepers Terracycle sport/PTFE chain tubes
