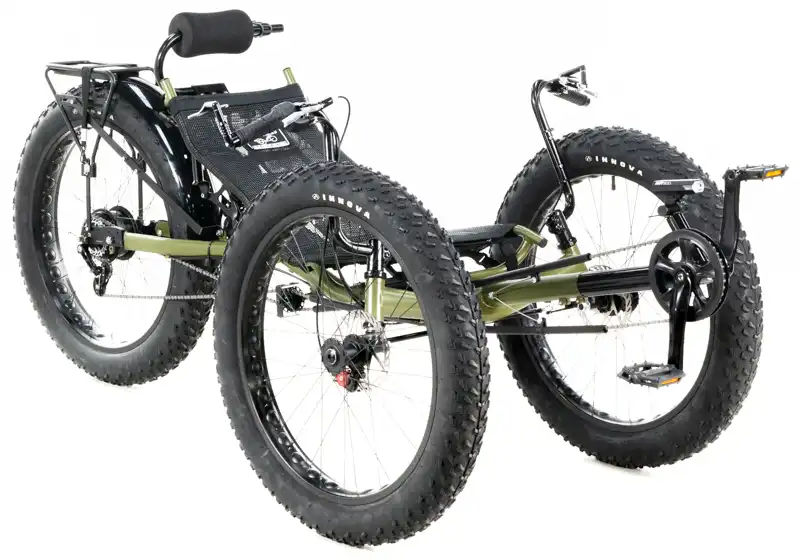

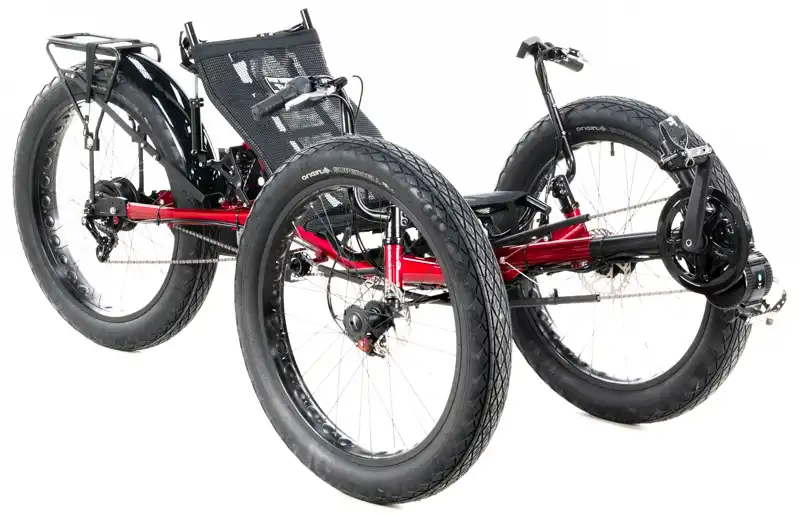

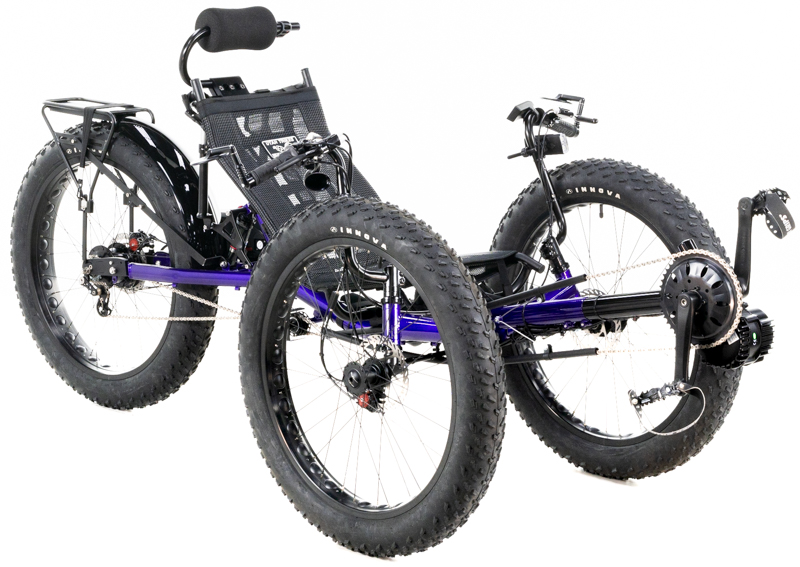

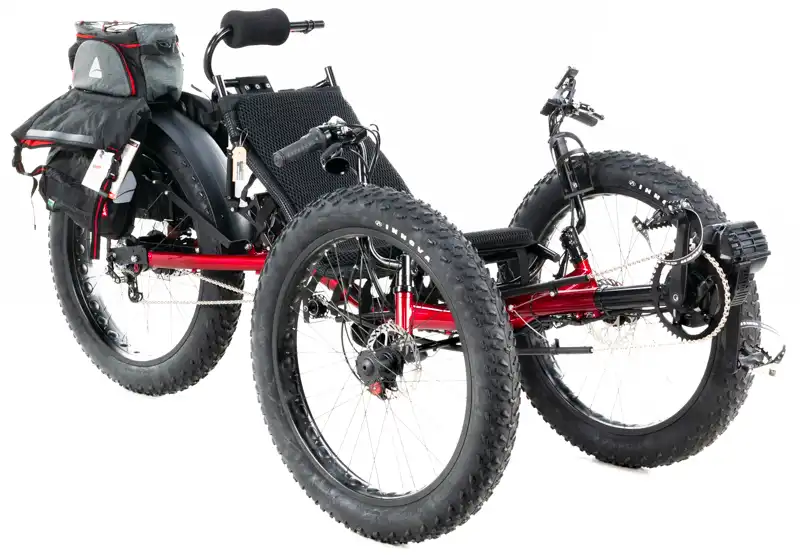

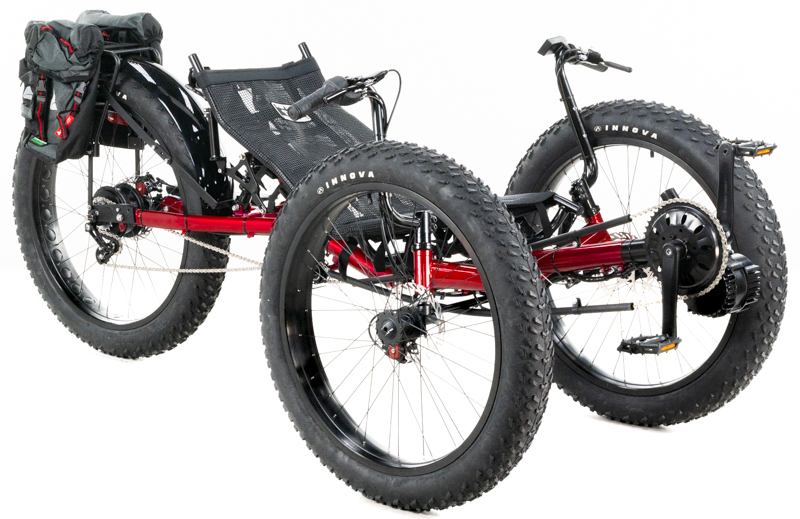

UTCustom Fat Tad Crawler FS - Full Suspension Fat Recumbent Trike

$3999 Starting at $3500 SALE PRICE

Availability: 10+ In Stock

Go anywhere, the world is your trail. The Fat Tad Crawler FS is a new spin on a popular trike. Our Fat Tad Crawler meets our Full Suspension Defiance. This trike offers the smoothest ride available in its category, bridging the gap between high quality and value price. With a slew of upgrade options, this is the best platform to build your dream full suspension fat recumbent. It features a durable steel frame, 300 pound capacity and adjustable custom mesh seat. Get traction, suspension, durability all in a package that just looks awesome.



Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details

Please note that we do not charge for assembly and actual shipping costs to you are subsidized by Utah Trikes. Optional items chosen through our Trike Configurator will be installed on the trike prior to shipping. Any price differences shown between items here and our standard parts catalog reflect the cost of installation and/or additional hardware needed to install the item. If you would like to install the item yourself please choose the options separately through our catalog. Also note, our trike customizer calculates the price difference between the stock component configuration and the many upgrades that we offer. When you choose upgraded parts through this customizer you will not get the stock parts as the Trike Configurator calculates the price difference between parts. If you want all of the stock parts in addition to the upgrades you must choose the stock trike from here and then choose the full-price replacement components from our catalog. We are adding new options all the time. If there is an option you want us to add let us know. Please contact us if you have any questions.

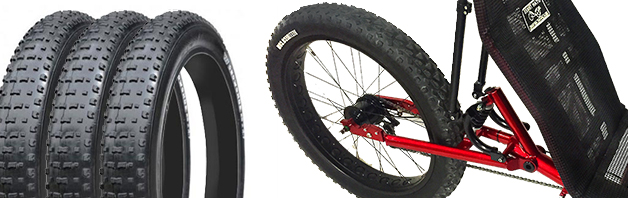

Head Turning Tires

Check it: 26x4-inch Vee Mission Tires with nearly a 30-inch diameter. Designed for fat-bike riders who really want to haul, the Vee Rubber Mission tire is 4-inches wide to give you a ridiculous amount of float. This tire is built for speed and cushion on hard packed surfaces. Its ramped knobs create great traction without slowing you down on the loose stuff.

Fully Suspended: Comfort Meets Utility

With this trike you get two types of suspension: active and passive. By controlling the air in the tires, the Crawler FS benefits from passive suspension on the smaller trail obstacles.

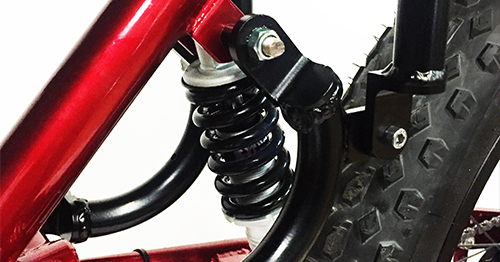

Additionally, we have built in full active suspension as well. The Crawler FS comes stock with a DMN Torch Shock in the rear, and features custom spring shocks in the front to offer maximum comfort. With our all-wheel suspension you'll also increase traction, giving you more control when you're out riding. This fully suspended monster makes curbs, trails, and uneven terrain feel like you're riding on clouds.

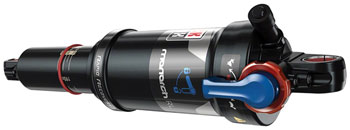

For even more rear suspension travel and tunability we can outfit your Fat Tad Crawler FS with a Rock Shox Monarch Air Shock.

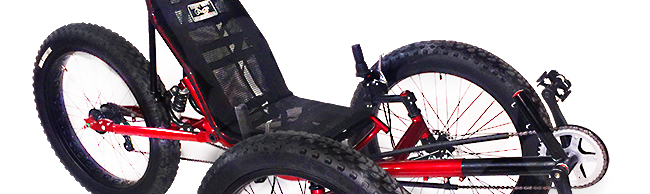

Custom Seat and Durable Frame

The Frame is made to last. Chromoly Steel will help pick up any reverb from the trail and is incredibly durable. The adjustable aluminum seat is designed to sit in one of six optional locations depending on rider height. Additionally, the rear seat supports allow for infinitely adjustable seat angle using velogenisis clamps to ensure a rigid connection with no seat sway. The Utah Trikes Custom seat mesh includes a pocket to carry your travel pump. Optionally, you can upgrade to our Performance mesh which adds a cargo pouch, insulated bladder pocket, and racing stripe.

Standard Gearing Single 38T Front Chainring Paired with a Shimano Alfine 8-Speed Premium Hub. These is a great starting platform. Do you need more gears? Consider some of the other options below!

Upgrade Options

Front Options
Metro Drive: Is a dual drive component from 28t to 45t. The Patterson Transmission delivers rocket fast front shifting every time. This invention will change the way you ride your bike. Now you can use your front shifter any time to get the gear you want right now. Secure and precise. Unaffected by pedal speed or load. Once you try it, you will never go back to multiple chain rings again.

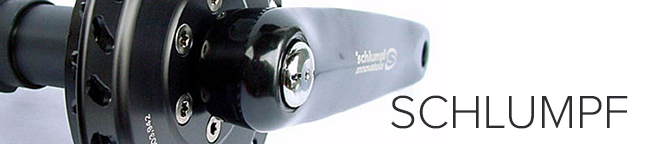

Schlumpf High Speed 27/68: is an internal gearing solution that uses planetary gears to increase the rotational speed of the chain ring compared to the crank arms by 250% when engaged. When disengaged, the cranks are effectively locked to the 27-tooth sprocket. With such a wide gear range, the HSD completely replaces the front chain rings, derailleur, and shifter, even though it only has two gears. The wide gear range means virtually no overlapping of the gear ratios.

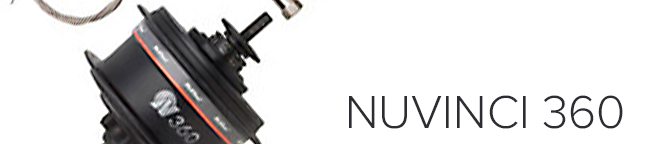

Rear Options Nuvinci N360: is so smooth because it has no gears. This Constantly Variable Planetary Transmission uses ball bearings to achieve a 360% gear range

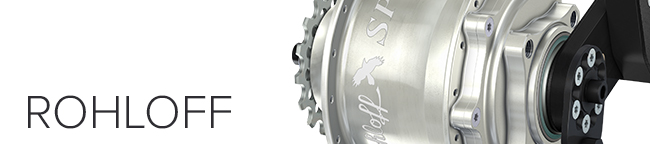

Rohloff Disc Speedhub: is one of the greatest internally geared hubs on the market. Shifting is practically unnoticeable. The Rohloff features 14 gears that are equally spaced over a wide spread of ratios, confined within a sealed bearing hub and weigh a similar amount to a typical mountain bike derailleur system.

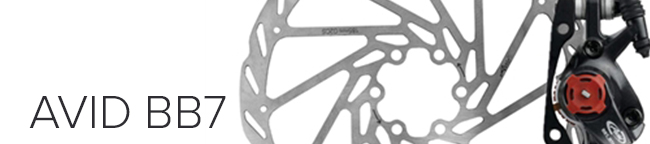

Rear Brake Increase your stopping power and add an extra element of control to your ride with a rear brake. The Avid BB7 Disc break is a quality disc brake and includes the locking brake lever. Lock the brake, exit the trike and leave it without fear of it rolling away.

Detailed Specifications

Frame Material Hardened Cromoly Steel
Trike Weight 65lbs
Total Weight Capacity 300lb Rider and 65lb Cargo
Wheelbase 49 Inches
Wheel Track 32 Inches
Total Length 78-85 Inches (Depends on Rider Xseam)
Total Width 36 Inches
Total Assembled Height 36-40 Inches (Depends on Seat Angle)
Ground Clearance 12 Inches
Bottom Bracket Height 24 Inches
X-Seam Range 32-47 Inches (Adjustable Boom and Seat Positions)
Steering Type Adjustable Direct Steering
Steering Pivot Type Dual Ball Bearing Headset
Ackerman Steering Yes
Seat Height 22 Inches
Seat Width 15.5 Inches
Country of Origin USA/Taiwan
