Catrike Cat-4 Quad by UT Custom

$4000 Starting at $3800 SALE PRICE

Availability: 1 In Stock

The Catrike Cat-4 Quad turns the Catrike platform into the ultimate utility vehicle. With enhanced stability, increased weight capacity, and lots of room for cargo, the Cat-4 is the pedal car you always wanted.



Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details

Please note that we do not charge for assembly and actual shipping costs to you are subsidized by Utah Trikes. Optional items chosen through our Trike Configurator will be installed on the trike prior to shipping. Any price differences shown between items here and our standard parts catalog reflect the cost of installation and/or additional hardware needed to install the item. If you would like to install the item yourself please choose the options separately through our catalog. Also note, our trike customizer calculates the price difference between the stock component configuration and the many upgrades that we offer. When you choose upgraded parts through this customizer you will not get the stock parts as the Trike Configurator calculates the price difference between parts. If you want all of the stock parts in addition to the upgrades you must choose the stock trike from here and then choose the full-price replacement components from our catalog. We are adding new options all the time. If there is an option you want us to add let us know. Please contact us if you have any questions.

The Cat-4 Quad is made in the USA and features many custom gearing options. We now have two custom differential options available. Our geared differential is perfect for road riding performance whereas our new posi-trac differential is all about traction on loose surfaces or even two-wheel tricks.

The Catrike Cat-4 Quad by Utah Trikes

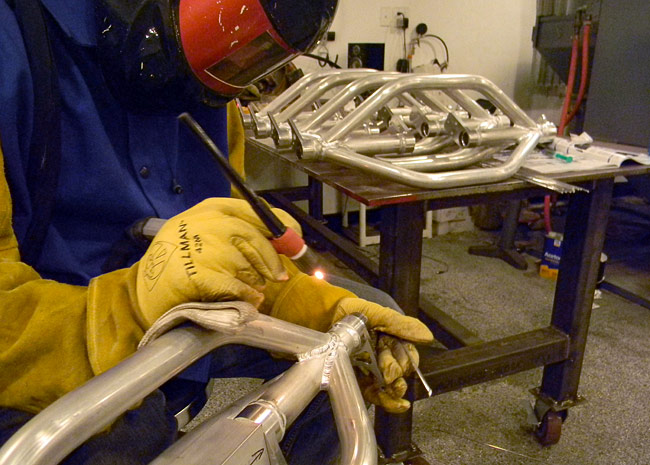

When we first talked with Catrike about making a Quad they were excited about the prospect. There were several designs built and tested over the past three years, but it was really this past year that things started coming together. Not only have we finished building our own machine shop and fabrication facility, but also several members of the Utah Trikes staff have been trained and certified in Solidworks, TIG welding, general fabrication, and powder coating. The stars lined up, and just before the 2012 Catrike Rally in Florida we completed our last prototypes and were able to demo them at the Rally.

The Quad has been designed for those looking for a true pedal car. The additional cargo capacity, traction, and 4-wheel disc braking make it the perfect utility vehicle for touring and commuting. The Quad conversion of the Catrike changes the handling characteristics of the base trike. The stability of the Cat-4 Quad is the best we have encountered on any cycle. The unique change to the geometry makes the Catrike ride like its on rails. It wants to go straight like never before.

The Quad housing and mounting system is manufactured entirely in-house by Utah Trikes. All parts of the housing are machined in-house which allowed us to do a lot of testing and create an efficient production process. The inner and outer mounts act as their own jigs during assembly and welding. We built our own coping machine to mill the three bracing supports so there is a no-gap fit and perfect alignment. We use oversized tubing throughout, so that despite weighing less than three pounds, our cage can easily support over 500lbs of applied weight. With the combined axle system we've raised the rider weight capacity of the Catrike to 350lbs with a combined rider/payload capacity of 500lbs.

Gearing Options

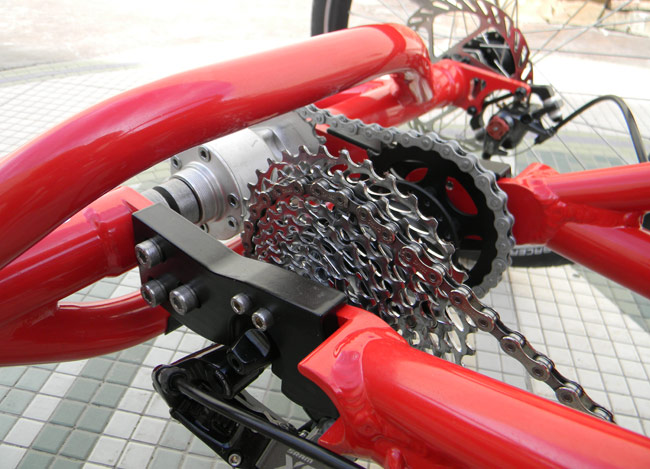

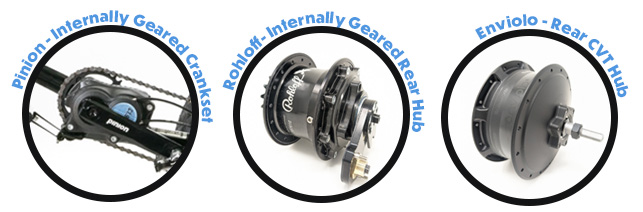

We started out by designing a coupling system that allows us to use the stock Catrike dropouts to hold a middrive. The beauty of this setup is that Catrikeís already efficient chainline can be used and mostly off-the-shelf hubs and transmissions can be used for gearing. Using a middrive gearing system instead of running the gearing directly on the rear axle offers many advantages. Our middrive coupling system allows for the use of derailleur-based gearing as well as any of our Internally Geared Hub (IGH) transmissions. Being able to use derailleurs on our Quads is a first for us, and makes for a very efficient drive train. For performance riders, the derailleurs are hard to beat, but they do leave the rear derailleur exposed making this setup mostly suited for road riding. The IGH transmissions offer wide gear ranges, ultimate reliability, ease of riding, and increased ground clearance.

Besides being able to use a variety of gearing systems the middrive systems allows us to have a lot of control over the final gearing. For example, if we use the standard gearing found on the Catrike Trail up to the middrive and then use a 26t sprocket on the middrive with a 20t sprocket on the axle we raise our gearing to be equivalent to running 26-inch rear wheels. By choosing different drive sprockets the gearing candidates be geared as low or high as you want. This allows the rider a lot of control in choosing their ultimate gear ratios.

Rear Axle

We are using a modified Samagaga geared differential with 17mm hardened steel axles. Despite being slightly heavier, we decided to go with the thicker axle to give us more strength and allow us to use a high-quality bearing. Each axle is machined to attach to our own custom rotor mount. We chose to create our own rotor mount so that we could use OEM Catrike wheels on the rear of the Quad. The wheels attach by mating to the rotor mount and then secured with a centering shim and 16mm locknut. This make removing the wheels easy and the entire assembly very modular.

Braking

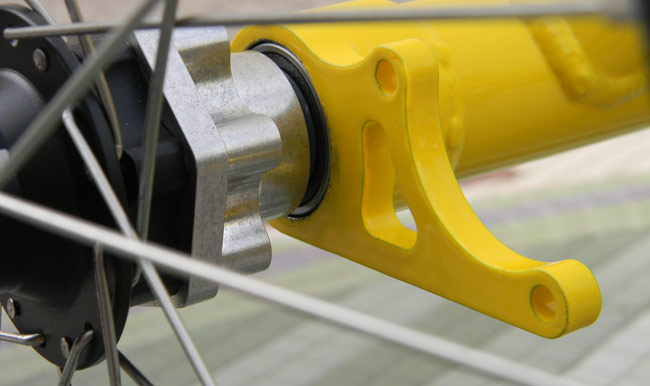

All Cat-4 Quads have provisions for optional rear brakes. If you choose the four-wheel Avid BB7 disc brake option you can choose how you want the brake levers setup. The default setup is as a motorcycle with front brakes on the right side and rear on the left. We can also set the levers up like a mountain bike with the actions reversed and the left lever actuating the front brakes. For the performance riders we can setup the right and left levers to control the right and left calipers respectively. The performance setup is especially suited for fast cornering and two-wheel tricks to prevent differential slippage.

As a Platform

We have a complete cargo system for the Cat-4 Quad and will be releasing many other attachments that fit on the Quad including generator, gas and electric motor assist, trailer hitches, fender kit, and a canopy system.

Is a Quad for you?

If weight is your primary concern, then you are probably better off with the trike or even a skinny-tire carbon road bike, but the mere 13lbs our rear end adds to the Catrike brings a lot to the table. The Cat-4 Quad is a performance-oriented option for those wanting utility, traction, or simply something a little difference.

Already have a Catrike?

As an upgrade, the Quad kit can be painted to match all the existing Catrike colors, in addition to any colors offered by our Custom Color Shop. The Quad kit can be purchased through Utah Trikes and select Catrike dealers.

Detailed Specifications

Frame Material 7005 Aluminum
Steering Type Direct steering
Steering Pivot Type Independent Sealed bearing FSA Headset
Ackerman Steering Yes
Self Centering Yes
Country of Origin USA!
Warranty 5 year limited
