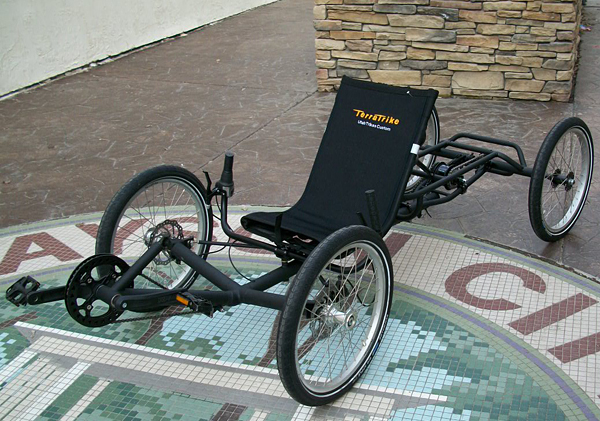

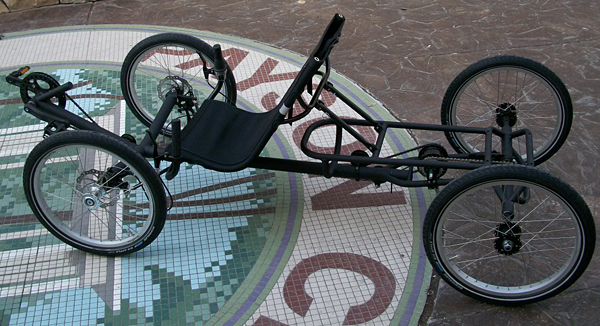

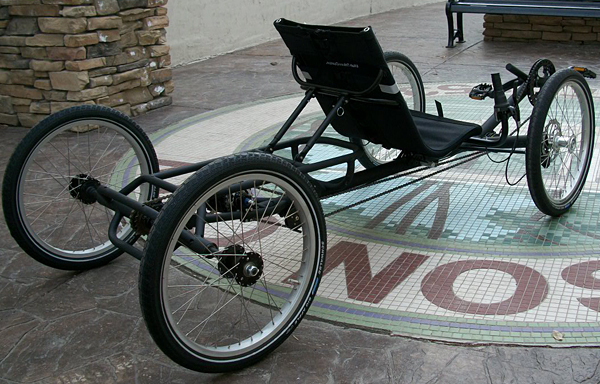

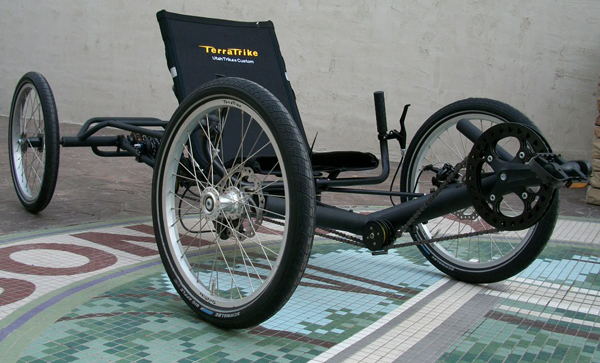

2010 Extended Quad Get your own Utah Trikes 2010 Quad This is a prototype extended quad with a 12 inch longer wheelbase and 20-inch cargo area. The new welded rear cage makes this the strongest quad we have made to date. We have tested the cargo capacity with over 300lbs in addition to the standard 300lb rider weight capacity. Extended Rear End Our extended quad has a 12 inch longer frame and increased cargo capacity. Thereis no loss of adjustability with the adjustable seat stays and quick release seat clamp. The chainline is smooth, efficient, and quiet with our custom TerraCycle Idler setup. Positraction Axle Our axle system uses a dual freewheel design to make sure power is always sent to at least one wheel. This efficient design gives maximum traction for even the loosest gravel and slick snow. Share your comments below: What does she weigh ? Posted by Gizmo LI 03/11/2010 05:33:55 AM We weight her in right at 62lbs Posted by Ashley If the rear axel housings were a bit longer or the rear axels a bit shorter, you could make fender and brake mounts similar to the front axel. Posted by Earl 03/13/2010 07:10:52 AM Eventually we will make a rear fender option similar to that of the Greenspeed Anura. Posted by Ashley Do you sell the longbed kits separately? What's the effect on turning radius? Bad Ass, BTW. Posted by LLCoolBeans 03/15/2010 08:42:46 AM The extended Quad is welded up as you see it, so there is no way to make a kit. the Turnradius is still very good, but not quite as sharp as the standard quad. Posted by Ashley Does this mean that it will be possible to put 26" wheels on the rear (with 24" on the front)? Posted by Raymond 03/16/2010 12:50:12 AM You could, although I don't recommend the larger wheels up front since it will reduce the steering radius. Posted by Ashley Will it be available with the staton engine? Posted by Pierre 04/06/2010 05:56:36 AM We already have 2 prototypes in the shop and it is awesome!!! We will be releasing a new production version of the extended quad and a gas version soon. Posted by Ashley whats the projected retail? Posted by ads47 04/09/2010 09:52:18 AM Right now we are adding $500 for the extension. We have a slick gas option that bolts right on too. The increased strength is amazing. Posted by Ashley this looks like exactly what I want! do you have a projected date when it will be available? Will there be available a frame work to hold your cargo above the drive train. Posted by Karen 04/17/2010 10:47:05 AM The Extended Quad is available now. The larger axle cage support provides for much more cargo capacity. Posted by Ashley Can this quad be turned into a tandem? Posted by MaineYankee 07/03/2010 07:57:44 AM We can build a tandem Quad, but it is not as easy as just turning this into one. Posted by Ashley Is it possible to turn the quad into a tandem and have the second person facing backwards with a seat over the rear axle? Posted by lisagrtmom 07/05/2010 09:23:51 AM Yes, we could build a custom Quad like that. Posted by Ashley Is it on a Terratrike Path frame? Posted by Craig 07/14/2010 06:44:56 AM Yes, we use the TerraTrike Path for the front of the Quad frame. Posted by Ashley Comments: Nickname: E-mail (not published): All comments are moderated by Utah Trikes staff. We reserve the right to remove or edit any comment that we deem to be inappropriate. After you add your comment it will not immediately appear until a moderator has read it.
