Product Category: CatalogTrikes       View all ICE products

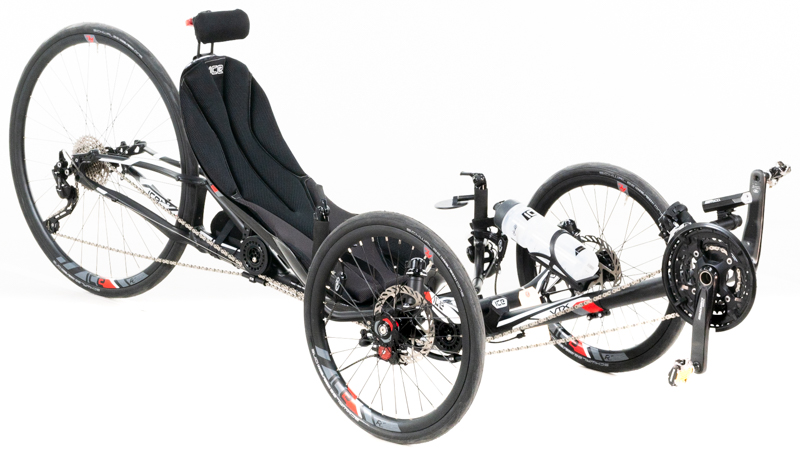

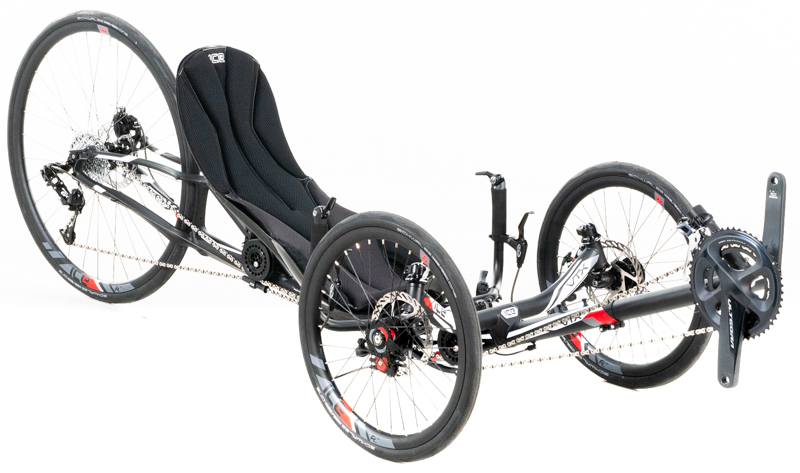

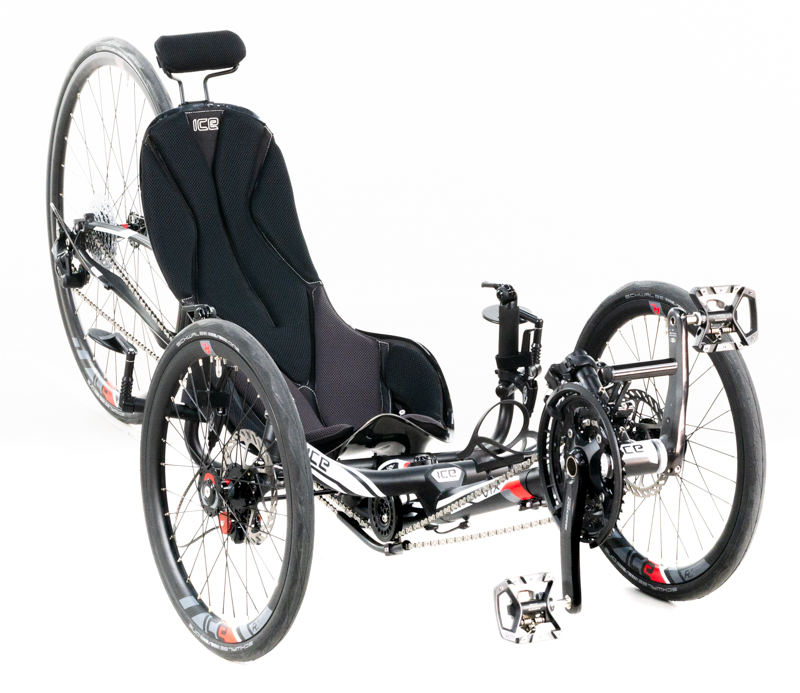

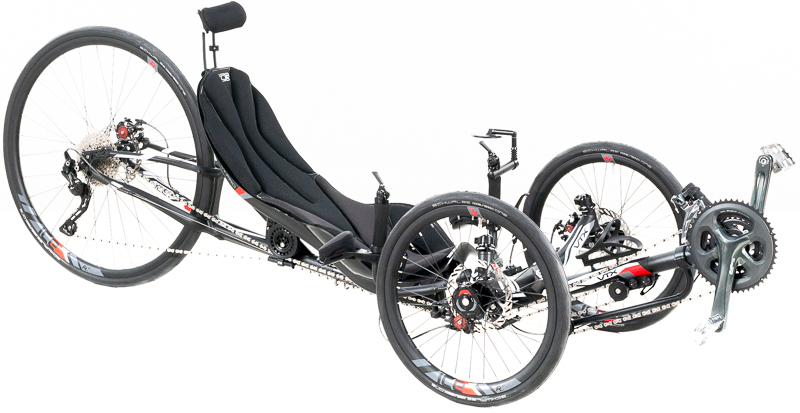

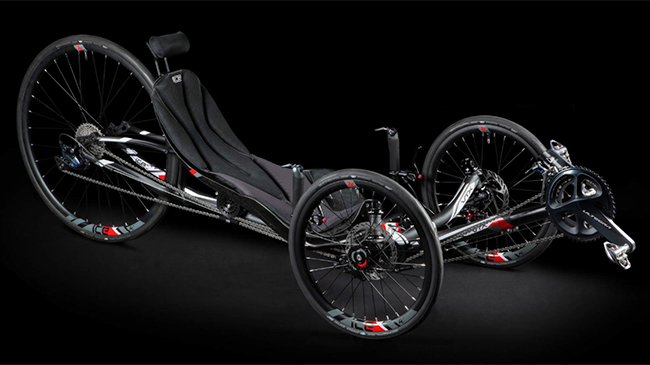

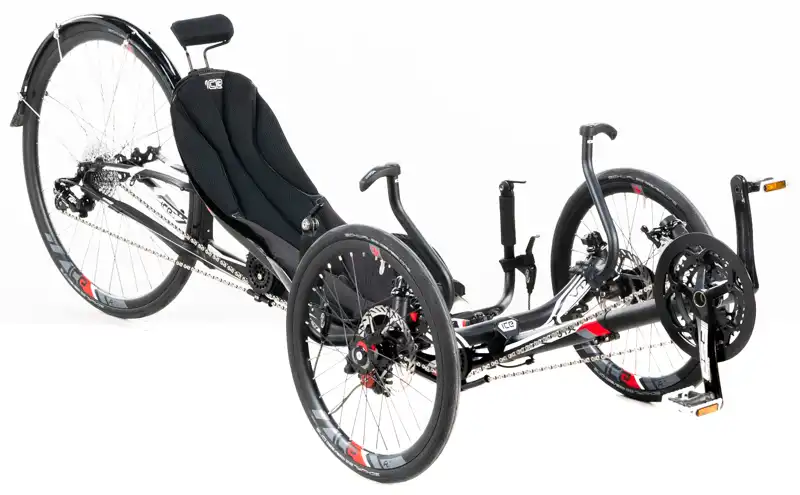

ICE VTX Racing Trike

Starting at $4630

Availability: Call for Availability

Super charged with technical expertise and specialist knowledge, the ICE VTX is a brand new breed of recumbent trike. ICE VTX and VTX+ trikes are built on an optimised ICE frame featuring our No Brake Steer and Rider Positioning System.



Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details
Details

Please note that we do not charge for assembly and actual shipping costs to you are subsidized by Utah Trikes. Optional items chosen through our Trike Configurator will be installed on the trike prior to shipping. Any price differences shown between items here and our standard parts catalog reflect the cost of installation and/or additional hardware needed to install the item. If you would like to install the item yourself please choose the options separately through our catalog. Also note, our trike customizer calculates the price difference between the stock component configuration and the many upgrades that we offer. When you choose upgraded parts through this customizer you will not get the stock parts as the Trike Configurator calculates the price difference between parts. If you want all of the stock parts in addition to the upgrades you must choose the stock trike from here and then choose the full-price replacement components from our catalog. We are adding new options all the time. If there is an option you want us to add let us know. Please contact us if you have any questions.

The ICE VTX Features:

Un-hinged folding frame
Schwalbe Durano 700c rear wheel and 20" front wheels
V section white rims with red anodised nipples
Air-Pro glass fibre hard-shell seat
Avid BB7 disc brakes
SRAM X9 type 2 components
32.9lb (14.pkg) weight
Adjustable seat recline from 25 degreed upwards

2014 ICE Brochure

The Air-Pro Glass and Air-Pro Carbon are handmade composite hard-shell seats that provide exceptional stiffness with minimal weight. The Air-Pro seats are fitted as standard on the VTX and VTX+. The Air-Pro shell is anatomically shaped for comfort, supports through aggressive cornering and provides a firm brace to pedal against. Fitted to the shell is a custom composite foam cover made from breathable materials and incorporating ventilation channels, which allows air to flow across the back to aid cooling and comfort. Please see rider size guide to choose the correct seat size, note Max rider weight 230lbs (104Kg).

ICE Speed-Tech Idler Pully

Front rims - Alex DA16 Aero White
Front hubs - ICE SL32 with sealed cartridge bearings, White
Spokes & nipples - Stainless black double butted with red alloy nipples

ICE optimised frame with 4130 Chromoly steel cruciform

ICE Custom Lightweight One-peice Handlebar.

Detailed Specifications

Frame Material 4130 Chromoly cruciform 7005 heat treated boom and rear section
Trike Weight 32.9lbs (14.9kg)
Total Weight Capacity 230lbs (104kg)
Wheelbase 48.03"-49.21" (1220mm-1250mm)
Wheel Track 27.5" (700mm)
Total Length 78.5"-88" (1994mm-2235mm)
Total Width 29.5" (750mm)
Total Assembled Height 26.92" (684mm)
Ground Clearance 2.69" (68.5mm)
Bottom Bracket Height 11.69"-15.59" (297mm-396mm)
X-Seam Range 37"-48" (940-1219mm)
Gear Inch Range 22.5-122.72
Steering Type Indirect
Steering Pivot Type FSA Orbit-X A-head Type Headsets
Turning Circle 18ft (5.5m)
Seat Height 6.5"
Seat Angle 25-32 degrees
Country of Origin UK/Taiwan
Warranty 10 year warranty for original owner with activation
