Product Category: CatalogRear Wheel Size       View all UTCustom products

UTCustom Basic Wheel Extension Kit for Pre-2013 Catrikes

$174.95

Quantity:

Availability: At Least 8 In Stock
(also see availability of parts below)

You can now convert your Pre-2013 Catrike into a different machine. With the bigger rear wheel you will roll faster and have a smoother ride.

This is a package product.
Use the "Add to Cart" button above to add the entire package to your order.

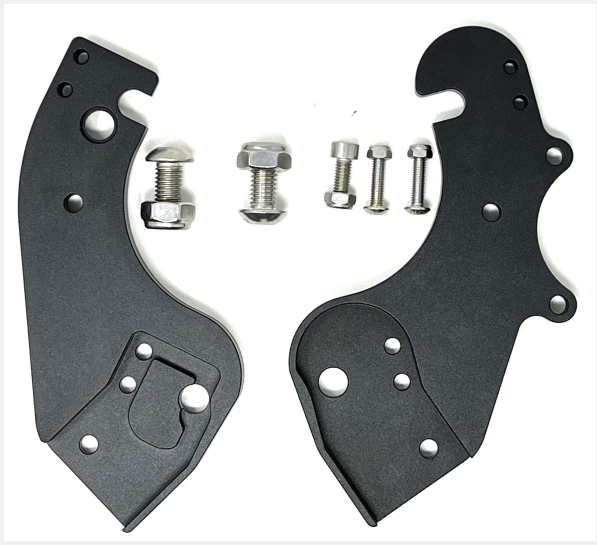

This package contains the following:

QTY 2

M10 Nut (10+ In Stock)

Individual Price: $2.00


QTY 1

M6 x 16 (Button head)

Individual Price: $1.00


QTY 1

M6 Locknut Stainless Steel (4 In Stock)

Individual Price: $1.00


QTY 2

M5 Nylon Locknut
Basic hardware. Stainless Steel. Metric 5mm Nylon Locknut.

This item is currently not available separately


QTY 2

M5 x 20mm Button head

This item is currently not available separately


QTY 2

M10 x 20 (Button Head)

This item is currently not available separately


Most Pre-2013 trikes will need a rerouting kit to prevent the chain rubbing on the frame. See the list below to see which rerouting kit your model trike is compatible with. The rerouting kits are as follows:
Rerouting Kit #1A - Single-Hole Clamp/Sport Idler
Rerouting Kit #1B - Single-Hole Clamp/Elite Idler
Rerouting Kit #2A - Adjustable Clamp/Sport Idler
Rerouting Kit #2B - Adjustable Clamp/Elite Idler

Many people already have their own wheels and idler parts, so we have seperated the parts out that you will need in the above drop-down selection. Most people will need the Basic Extension Kit, a Chain Rerouting Kit, a Wheel, and Tire. Kits are described below. Tires and tubes are available seperately from our Catalog. Also, Installation will require standard allen wrenches and a crescent wrench. Cassette swap or chain length may require special tools as well.

Our extension kit was designed to use the more popular 26-inch rear wheels, but we have tested it to work with 700c wheels on most of the 20-inch Catrike models. Installing a 26 or 700 wheel on the 2012 Trail with the adjustable seat will limit how far back the seat can lay down.

We have added two wheel options to the dropdown above including the Catrike OEM 26-inch wheel found on the Expedition (for those of you that want matching rims). We have also included our own handbuilt wheel featuring a disc brake hub and Velocity AeroHeat rim. We build our own wheels inhouse, so contact us for special needs. (Tires and tubes are available from our Catalog pages)

One of the cool things about our extension kit is that it allows you to add a rear disc brake that can function as a parking brake. If you would like a premade kit with a parking brake lever you can choose that option above.

We have tested the following trike configurations:

Pre-2013 Catrike Villager:
- Compatible with all rerouting kits
- 26x1.5 - Fender Compatible (G1 and G2)
- 26x1.75 - Fender Compatible (G1 Version only)
- 26x2.0 - Fender Compatible (G1 Version only)
- 26x2.35 - Fender Compatible (G1 Version only)
- 700c - Fender Compatible (G1 Version only)

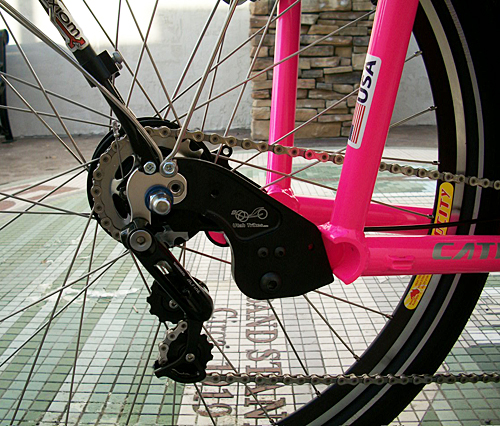

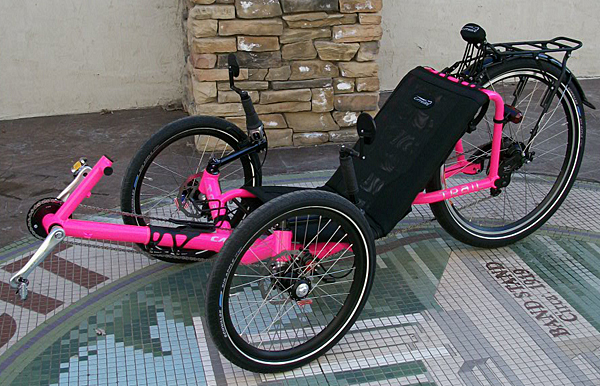

Pre-2013 Catrike Trail:
- Compatible with all rerouting kits
- 26x1.5 - Fender Compatible (G1 and G2)
- 26x1.75 - Fender Compatible (G1 Version only)
- 26x2.0 - Fender Compatible (G1 Version only)
- 26x2.35 - Not Fender Compatible (G1 Version only)
- 700c - Not Fender Compatible (G1 Version only)

Pre-2013 Catrike Pocket:
- Compatible with #2 rerouting kits
- 26x1.5 - Fender Compatible
- 26x1.75 - Fender Compatible
- 26x2.0 - Fender Compatible
- 26x2.35 - Not Fender Compatible
- 700c - Not Fender Compatible

Non-suspended Catrike Road:
- Compatible with all rerouting kits
- 26x1.5 - Fender Compatible
- 26x1.75 - Fender Compatible
- 26x2.0 - Fender Compatible
- 26x2.35 - Not Fender Compatible
- 700c - Not Fender Compatible

Pre-2013 Suspended Catrike Road:
- No rerouting kit needed
- 26x1.5 - Fender Compatible
- 26x1.75 - Fender Compatible

Catrike Speed:
- Most gear setups do not require a rerouting kit
- Compatible with #2 rerouting kits
- 26x1.5 - Fender Compatible
- 26x1.75 - Fender Compatible
- 26x2.0 - Fender Compatible
- 26x2.35 - Not Fender Compatible
- We have had many users use this kit to put 700s on their Speeds, but due to variations over the years on the Speed model the 700 wheel may not fit. Don't ask us if it will allow you to put a 700 on your Speed because we do not know.

Catrike Expedition:
- No rerouting kit needed
- 29er 2.35 - Not Fender Compatible
- 29er < 2.0 - Fender Compatible
- 700 <2.0 - Fender Compatible

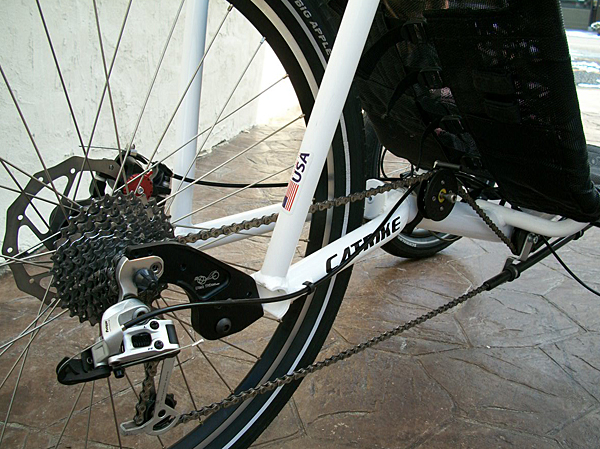

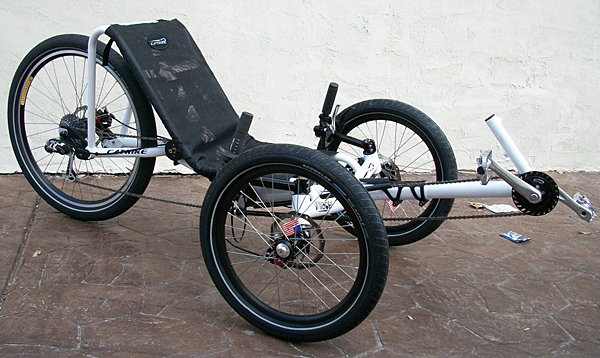

About the Kit: Catrike owners have been asking us for these for a couple of years and after nearly 6 months of design and prototyping we have finally finished this project. The results are fantastic. We have created a very nice extension kit that will allow you to put a 26 inch or 700c wheel on your 20-inch Cat.
So, what am I talking about? Well, lets suppose that you bought a Catrike Road and then the Expedition came out. Well, you really like the Expedition with its longer wheelbase and larger rear tire, but you have a lot invested in your trike. Up until now your only choice has been to sell the road (or give it to your significant other) and then buy an Expedition for yourself. While there is nothing wrong with that (after all, we are more than happy to sell you an Expedition) it may not be in your budget.

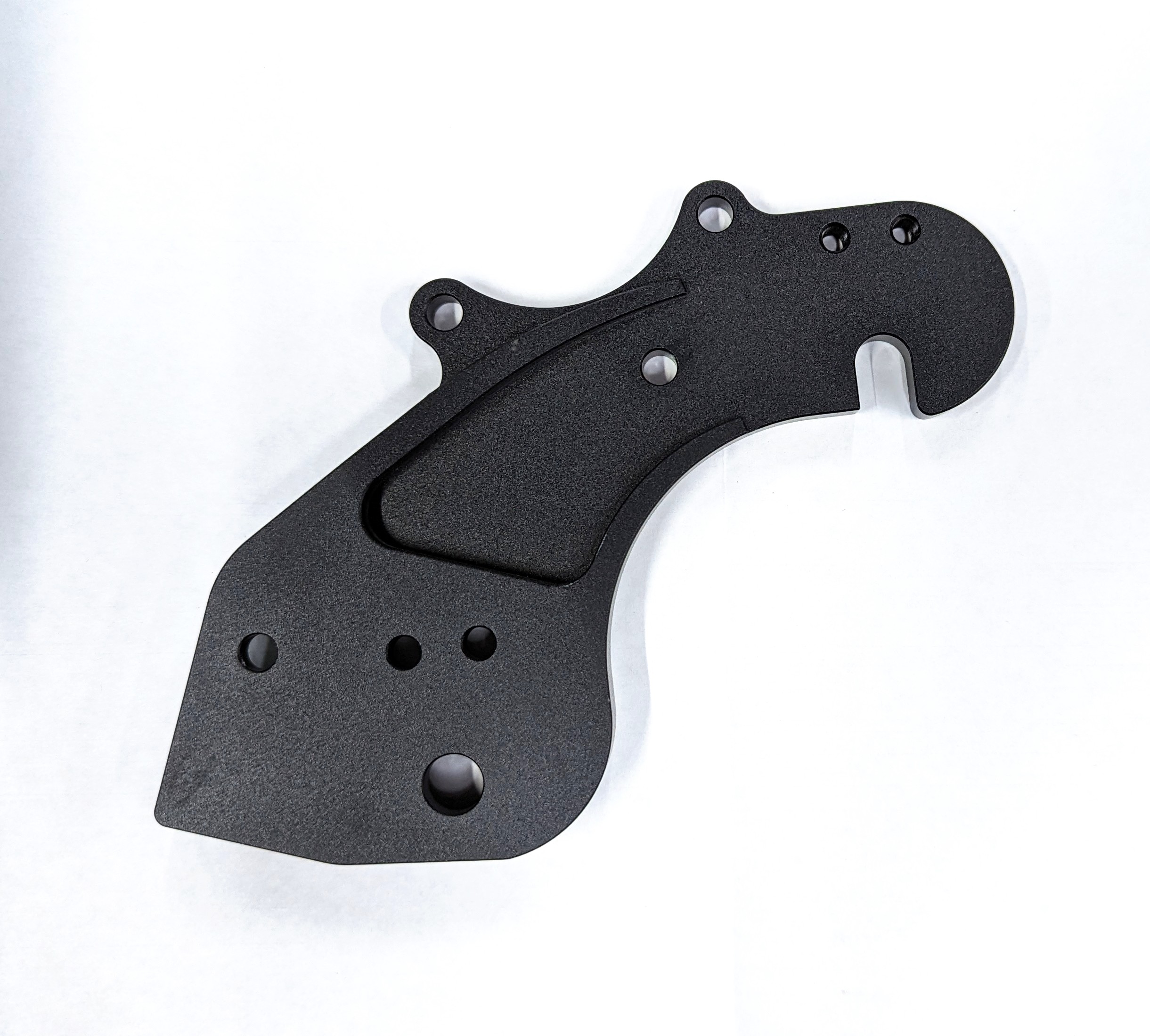

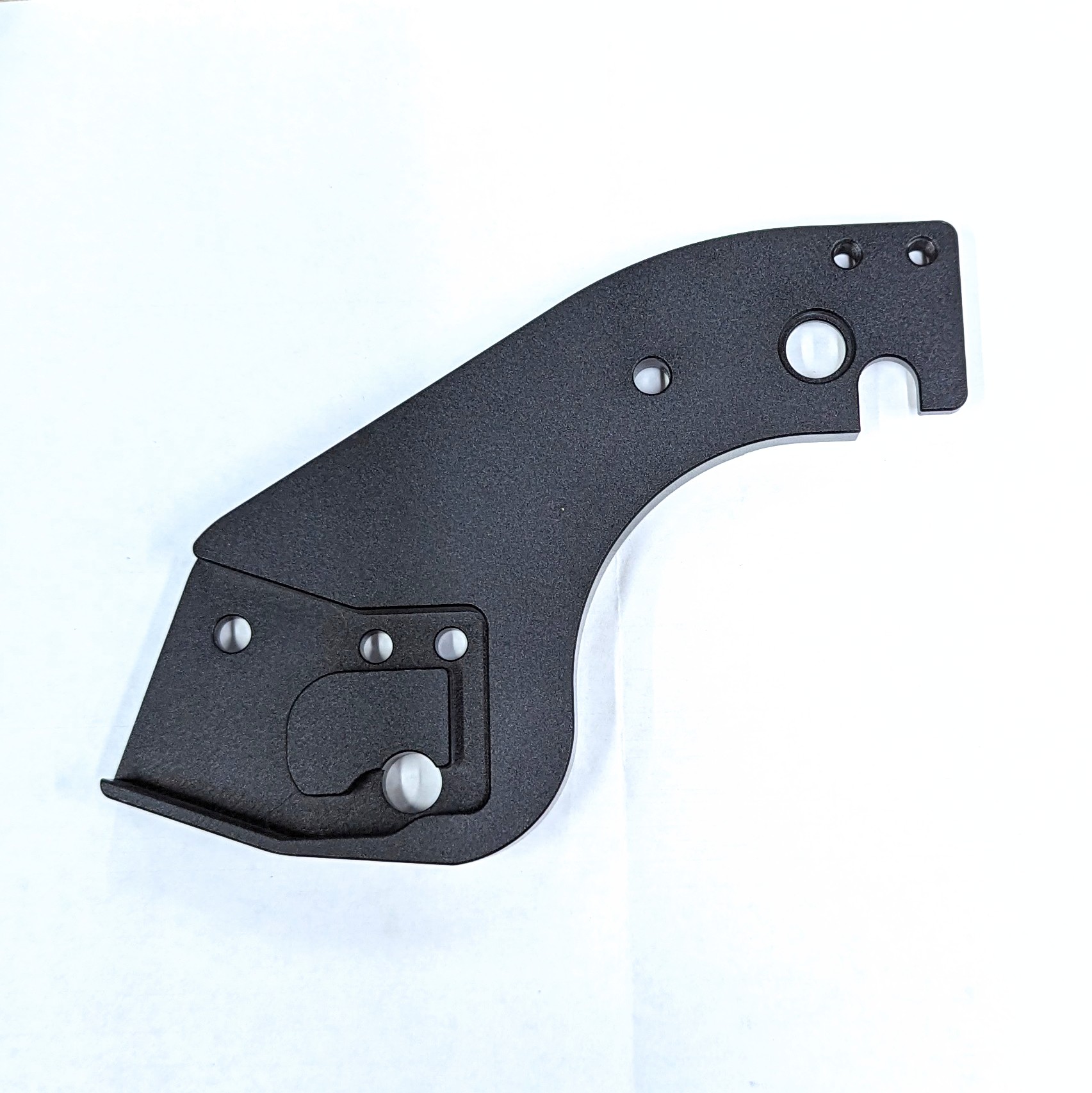

The basic kit includes the machined extensions and bolt hardware. The kit is designed to work with a standard 26-inch wheel with the appropriate chain rerouting kit. Our extension kit is setup with the OEM mounting for a Rohloff hub. The extension kit does not change the width of the dropouts, so it remains at 135mm which will work well with most 26-700 wheels.

NOTE: In mid/late 2004 Catrike started using a newer dropout design which lasted until 2013. These extensions will only work with these newer style dropouts. IT HAS COME TO OUR ATTENTION THAT SOME OF THE DROPOUTS USED ON PRE-MARCH-2008 MODELS HAVE 3MM DIFFERENCE ON THE TOP CIRCULAR PIECE. THE REST OF THE DROPOUT IS THE SAME. IN ORDER TO FIT THE EXTENSIONS ON IT WILL BE NECESSARY TO MAKE A SMALL CUT IN THE EXTENSIONS TO GO AROUND THIS PART. A DREMEL TOOL, DRILL BIT, OR FILE WILL WORK. THIS PROCEDURE IS SIMPLE AND SHOULD BE DONE IN WITH THE INTENDED TRIKE AVAILABLE FOR ACCURACY PURPOSES.
